Casyoo QB006 240W Quantum Board Grow Light for High-Efficiency Growing
$189.00
- High efficiency 2.9 μmol/J
- Samsung LM301B + 660nm red LEDs for maximum yield
- Strong output: up to 1200 W/㎡ PPFD @ 30cm
- Smooth 1–10V dimming (10–100%) control
- Reliable Meanwell XLG isolated driver (240W)
- IP54 protection with aluminum heatsink
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description
The QB006 240W Quantum Board Grow Light is made with advanced quantum board technology featuring Samsung LM301B and 660nm LEDs that are ideal for both vegetative and flowering stages.
It uses 240W of energy to run and can operate reliably at -20 to 50°C. The Meanwell driver on this QB006 grow light panel ensures a stable and continuous power for consistent performance. It also increases the overall lifespan of the grow light. The IP54 waterproof rating ensures that the QB006 works well in moist and dusty areas.
It features a 10mm aluminum heatsink for efficient heat dissipation and includes 1-10V dimming functionality (10%-100%) for precise light control.

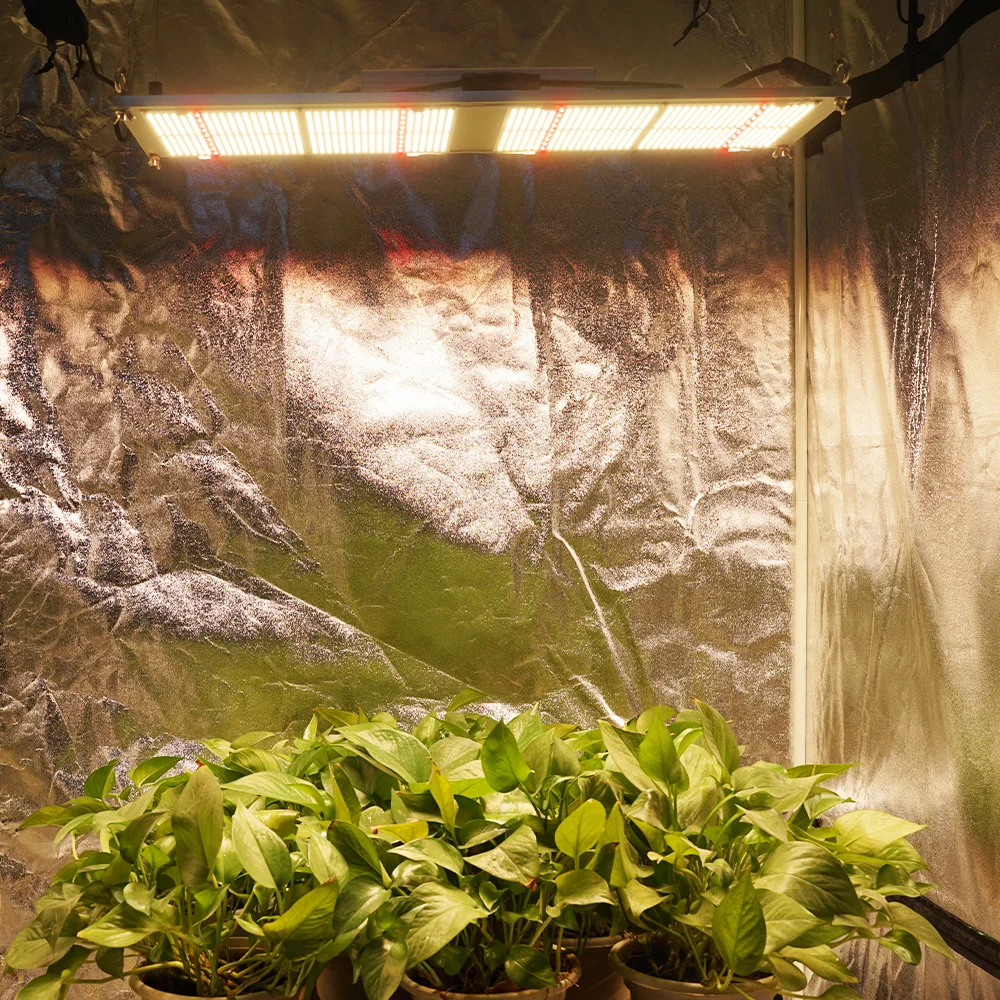

You can use one panel of this light in a grow tent covering a 2.5′ x 2.5′ area for flowering plants and a 3.5′ x 3.5′ area for vegetative growth. It is cost-effective equipment and is suitable for all types of indoor growing operations.
- High-Efficiency 240W Quantum Board Grow Light: QB006 uses an advanced quantum-board layout and delivers 2.9 μmol/J high efficacy. This turns more electricity into usable plant light, helping you get stronger growth and better yield with lower running costs.

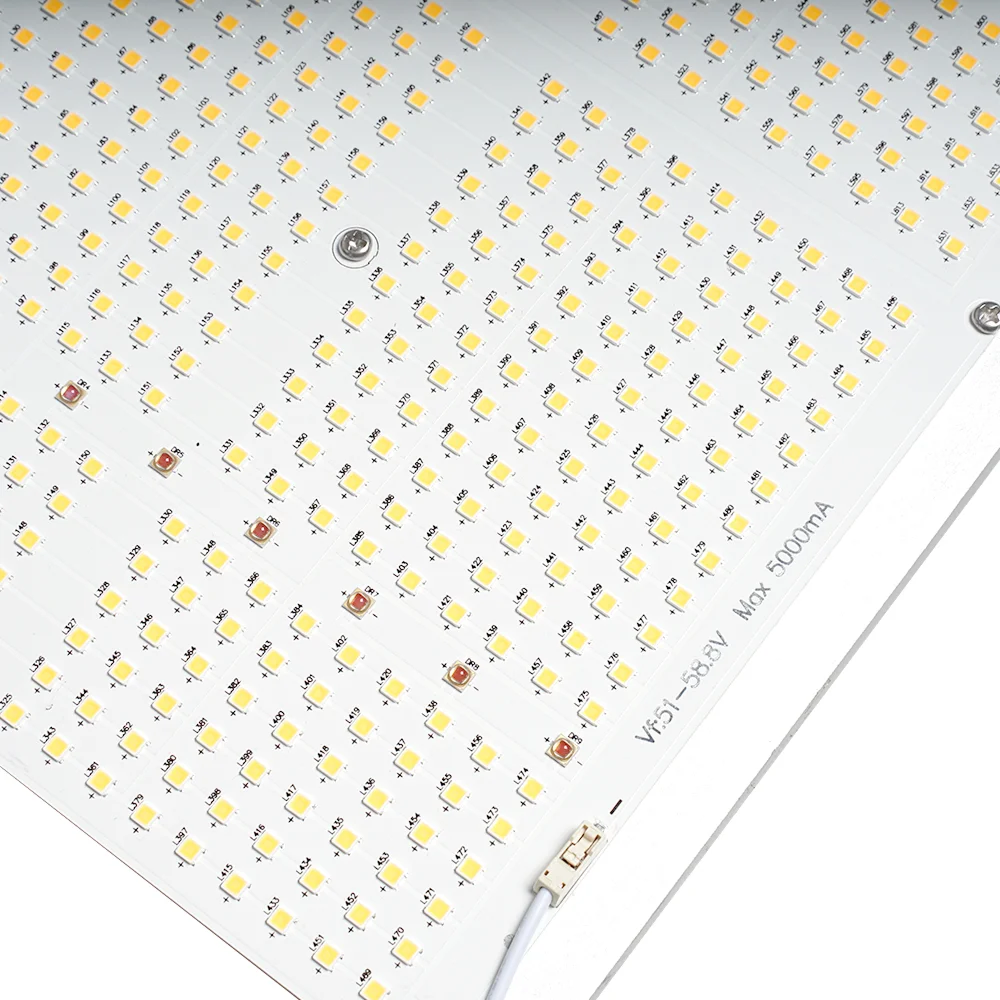

- Sunlike Full Spectrum for All Growth Stages: QB006 LED grow light panel uses Samsung LM301B 3500K white spectrum combined with 660nm red LEDs, delivering a proven veg-to-flower spectrum. The added red supports tighter flowering response and improved bud development without needing a separate bloom light.
- Powerful Output with Practical Coverage: With high-intensity output (up to 1200 W/㎡ PPFD @ 30cm), QB006 delivers the punch growers want from a 240W panel. One fixture is perfect for 2.5′ x 2.5′ bloom stage, 3.5′ x 3.5′ veg stage.
- Smooth 1–10V Dimming Control: Designed for indoor growers specifically, the QB006 features 1-10V dimming function (10%-100%), allowing you to adjust light intensity for different growth stages. This light brings you a flexible growing experience; you can dim down for seedlings and ramp up for flowering without switching fixtures.

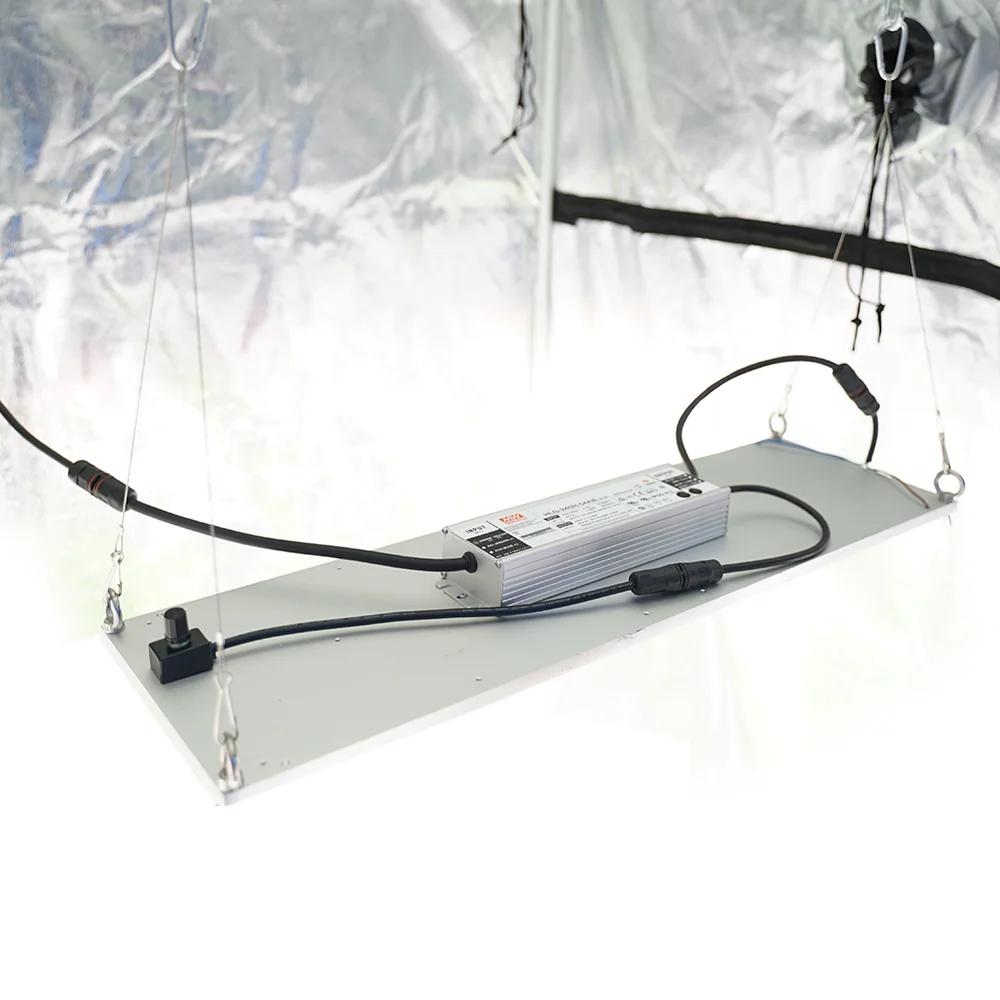

- Reliable Meanwell Driver + Grow-Room Protection: We equip an isolated Meanwell XLG driver for stable, long-term power delivery. The IP54 rating helps the QB005 handle dusty and humid grow environments. Combined with the 10mm aluminum heatsink, it’s built to run reliably season after season.
Ideal For:
- Small to medium grow tents
- Indoor cannabis veg/flower rooms (compact areas)
- Propagation (seedlings & clones)
- Vertical rack grows (multi-tier setups)
- Leafy greens & herbs
- Indoor hydroponics systems
Specification
| Item Code | CSY-QB006-240W |
| Light Source (LED Chips) | 1296pcs SPMWHD32AMD5VAUSS0 LM301B 3500K 660nm V2 LH351H 3535 |
| Working voltage | AC90-305V |
| Frequency | 50/60Hz |
| Power Factor (PF) | > 0.9 |
| Dimensions | 600*195mm |
| IP Rating | IP54 |
| Spectrum | white+660nm |
| PAR | 250w/m2 (30cm), 110w/m2 (60cm) |
| PPFD | 1200 μmol/m²/s (30cm), 5240 μmol/m²/s (60cm) |
| PPE (Photon Efficacy) | 2.9 μmol/J |
| Luminous efficacy | 78400 lux (30cm), 34000 lux (60cm) |
| LED Driver | Isolated Meanwell LED Driver XLG Series-240W |
| Lifetime | >50,000hours |
| Heat Sink | 10mm Aluminum heatsink |
| Dimming Function | 1-10V 10%-100% dimming |
| Customization | Length, spectrum, color, packaging, branding services, etc. |
FAQs
1. Does the QB006 LED grow light have dimming function?
Yes. The QB006 200W Quantum Board Grow Light supports 1–10V dimming from 10% to 100%, so you can easily adjust light intensity for seedlings, veg, and flowering stages without constantly changing the hanging height.
2. What height should I hang the QB006 from germination through flower?
Here are some grow tips, hope it can help: Seedling/Germination: 24″–30″, Veg: 18″–24″, Flower: 12″–18″. For consistent results at scale, dial in intensity using 1–10V dimming and adjust height based on canopy response and your target PPFD.
3. What coverage can one QB006 fixture deliver?
For typical indoor cultivation, one QB006 covers approximately 3.5’×3.5′ in vegetative and 2.5’×2.5′ in flowering. This makes it a strong fit for small-to-medium tents, racks, and compact grow rooms where uniform coverage is required.
4. What driver is used in QB006, and how does it support reliability?
QB006 uses an isolated Meanwell XLG Series 240W driver, selected for stable power delivery and long-term operation. This helps maintain consistent output and supports reliable performance in continuous-duty cultivation settings.
5. How does the 660nm deep red benefit flowering?
The 660nm deep red wavelength supports flowering response and bud development, working together with the white spectrum to help plants transition into bloom and produce denser flowers with better overall finish.
6. Is the QB006 suitable for humid or dusty grow environments?
Yes. QB006 has an IP54 rating for dust and moisture resistance and can operate reliably from -20°C to 50°C. It also uses a 10mm aluminum heatsink and an isolated Meanwell XLG 240W driver to help ensure stable, long-term performance.
