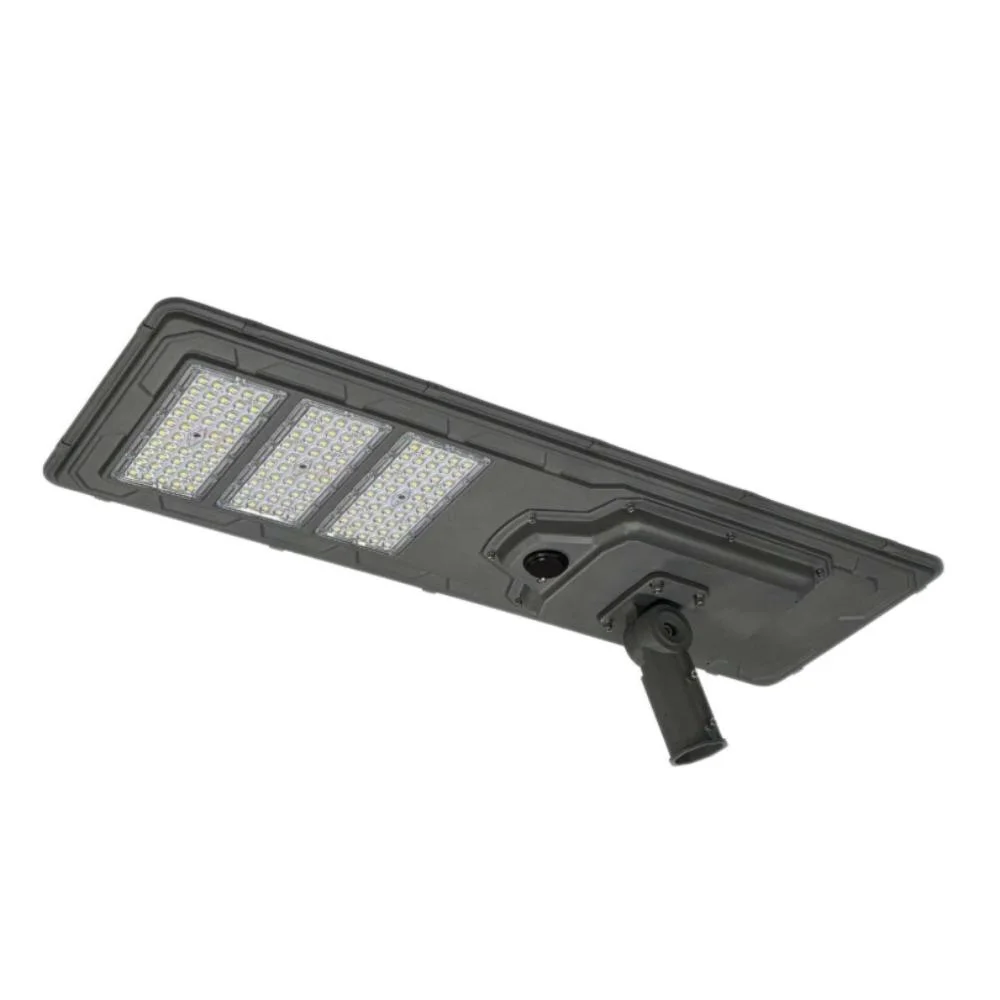

Casyoo Helios Axis Series All-in-One Solar Street Light for Reliable Outdoor Illumination
$73.50
- 400W High Output: Bright, wide-area illumination with 9600LM performance.
- 160lm/W Efficiency: Premium Bridgelux 3030 LEDs for superior light quality.
- Long-Life LiFePO4 Battery: 5-year reliable energy storage for all-weather use.
- 80W Mono Solar Panel: 23% efficiency for fast charging and stable runtime.
- Smart Auto Control: Time, light, and motion sensing for efficient dusk-to-dawn lighting.
- Integrated All-in-One Design: Quick installation with no wiring and minimal maintenance.
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description
The Helios Axis all-in-one solar street light has a high-efficiency Bridgelux 3030 LEDs (160lm/W, 9600 lumens) combined with an advanced 80 W A-grade monocrystalline solar panel and a long life battery of up to 5 years of reliable operation. With a 400W LED output, it delivers powerful, uniform illumination suitable for various outdoor applications. Its smart control system integrates both time sensors, light sensors and motion sensors to provide smart lighting, which is energy saving at dusk and dawn. The Helios Axis is designed with a fully integrated housing that makes it easy to install and maintain. It is designed to last long and operate under any weather condition, and so it is the perfect choice of lighting in the road, parks, walkways, and residential zones. OEM/ODM of various projects is possible.
- High Luminous Efficiency – 400W Light source output power, Bridgelux 3030 LED chips deliver up to 160lm/W and 9600 lumens of bright, uniform light.
- Reliable Battery – Maintenance-free and long life, safe and lasting battery of more than 5 years.
- A+ Grade Monocrystalline Panel – 80W solar panel with 23% conversion efficiency, providing stable charging and 12-hour runtime.
- Smart Control System – Built-in motion, light, and time sensors can serve to automatically turn on at dusk and turn off at dawn in an energy saving mode.
- All-in-One Design – Combines LED module, solar panel, controller, and battery into a single unit for easy setup and low maintenance.
- Customizable Options – OEM/ODM services available for tailored configurations of battery, panel, and sensor specifications.
Ideal For
Park, road, square, community
Specification
| Series | Helios Axis |
| Actual Power | 60W |
| Output Power | 400W |
| Luminous Flux | 9600LM |
| LED Brand & Type | Bridgelux SMD3030 LEDs, 200pcs |
| Color Temperature | 6500 K |
| CRI | RA > 85 |
| Lighting Angle | 120° |
| Photo Efficiency | ≥160lm/W |
| Battery Life | 5 years |
| Battery Model | 32700 |
| Lighting Mode | Light control + Time control + Induction |
| Lighting Duration | 12 hours |
| Conversion Efficiency | 23% |
| Photovoltaic Panels | 80W Monocrystalline silicon A+, 6V |
| Lamp Body Material | Galvanized steel |
| Stent Diameter | φ80mm |
| Surface Colour | Gray |
| Size of Luminaires | 1160*400*280mm |
| Operating Temperature | -25°C~65°C |
| IP Class | IP65 |
| Customization | Yes |
| Warranty | 2 years |
FAQs
1. Why is the Helios Axis different than any other street lighting that uses solar power?
Helios Axis combines premium Bridgelux LEDs, an A+ grade solar panel, and a long-life LiFePO4 battery in a single integrated design. It delivers 160lm/W high efficiency, and smart controls that ensure reliable operation without need of maintenance.
2. How to install this light?
The all-in-one is to do away with complex wiring. All you need to do is to put the light on a pole or a wall, adjust the angle of the panel toward sunlight, and then it’s ready to work automatically from dusk to dawn.
3. Where can the Helios Axis be applied for?
Best for roads, highways, parks, squares, parking areas, and residential communities. Also remote or off-grid locations where wiring is difficult.
4. Does the light stay bright all night or only when someone passes by?
Usually, the light is set at full brightness for the first 4 hours and then turns into energy-saving mode for the last 4 hours. But you can also communicate with our experts to reset the program and let it light up for the whole night.
5. Will this light still work with indirect sun light?
Yes, but if the light is too weak, the solar panel will be charged slowly and cannot collect enough energy for the light to light up for a whole night.
6. Can I customize the light according to my project needs?
Yes. Please provide your LED watterge, battery capacity, solar panel size or other customized requirements. Our team will offer you a suitable solution according to your needs.
