Casyoo Atlas Modular 50W–300W LED Street Light Fixture | IP65 | 130–140 lm/W
$46.00

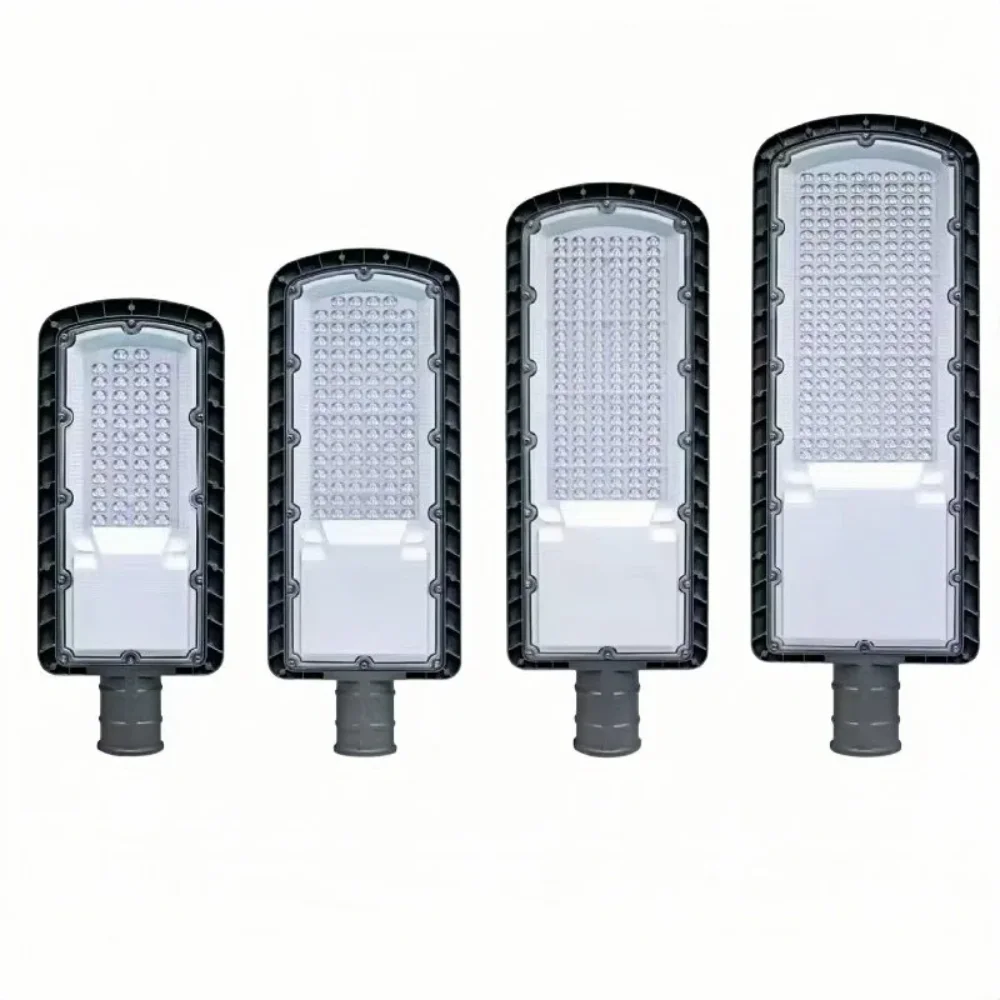

- 50–300W Options: 5 wattages for roads, yards, and parking lots
- 130–140 lm/W: Bright output with lower energy cost
- IP65 + 4kV Surge: Weatherproof and lightning-resistant protection
- SMD3030 LEDs: Osram/Philips optional, Ra>80 clarity
- 80,000h Lifetime: Long service interval, reduced maintenance
- -40 to +50°C: Stable lighting in extreme climates
- 50/60mm Spigot: Fast pole mounting, size customizable
- Radar/Photocell Ready: Auto on/off and energy-saving control
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description
The Casyoo Atlas Modular 50-300W LED Street Light is specifically designed for various outdoor lighting projects. It caters to locations requiring high performance and flexible configuration. Available in power options from 50W to 300W, it is suitable for different road widths, pole heights, and lighting standards. The luminaire features a thickened, one-piece aluminum housing for rapid heat dissipation and durability. High-efficiency 3030 LEDs provide stable illumination and a color rendering index (CRI) of >80, with optional motion or optical sensors for intelligent energy-saving operation. An IP65 protection rating and 4kV surge withstand capability ensure stable operation in harsh environments.
- Multi-watt options: 50W / 100W / 150W / 200W / 300W to match road classes and pole heights.
- High efficacy optics: 130–140 lm/W, strong illumination with lower operating costs.
- Outdoor electrical protection: IP65 waterproofing + 4kV surge protection for dependable operation.

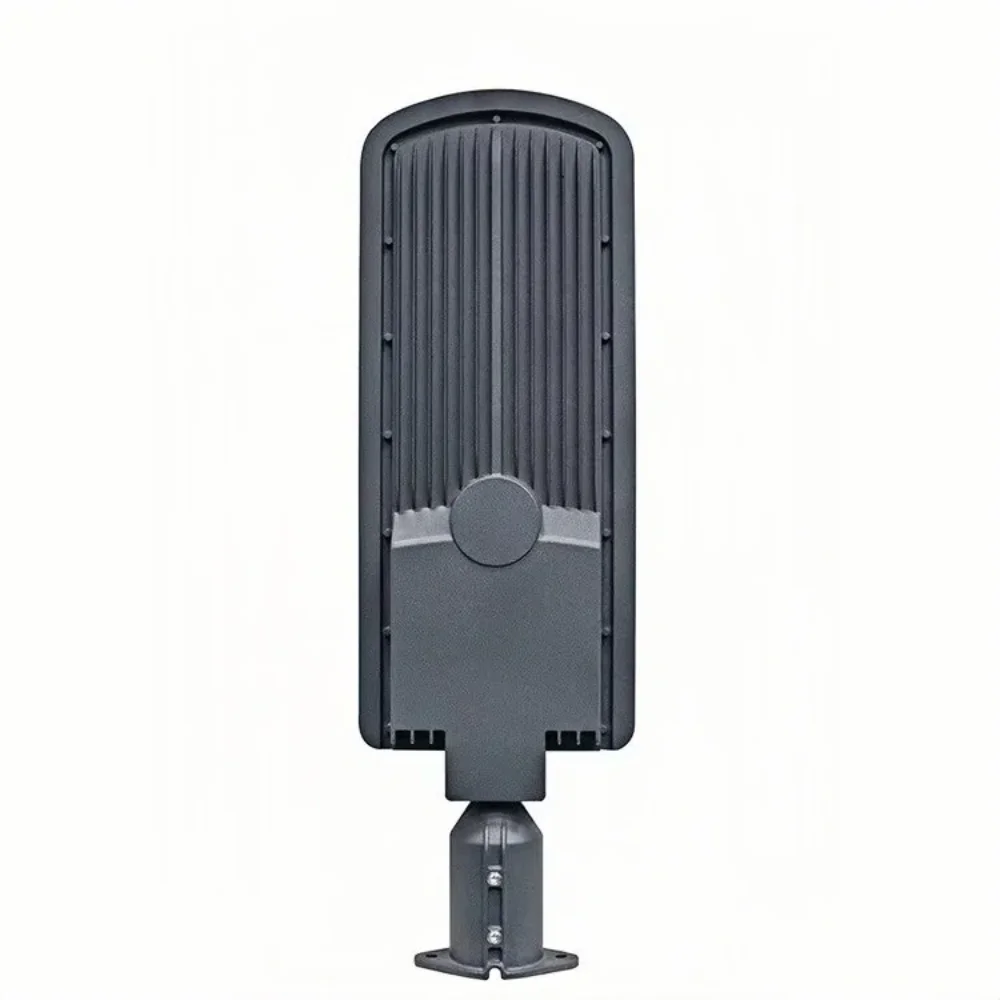

- Aviation aluminum body: one-piece thickened housing, resists corrosion and ensures fast heat dissipation.
- Premium LED options: SMD3030 with Osram/Philips (or equivalent), high CRI and low light decay.
- Flexible installation: 50/60mm spigot (customizable), fixed or angle-adjustable bracket options.
- Smart control: radar sensor/photocell / optical sensor options, auto on/off and wider coverage.
- Long-life engineering grade: up to 80,000h rated life, operating temperature -40~+50°C.
Ideal For:
Municipal roads, highways, interchanges, plazas, industrial parks, residential streets, pathways, parking lots, gas stations, rural roads, backyards
Specification
| Series | Atlas Modular |
| Power Range | 50W / 100W / 150W / 200W / 300W |
| Power Supply | AC 100–277V, 50/60Hz |
| Housing Material | Die-cast aluminum |
| IP Rating | IP65 |
| LED Type | SMD3030 (Osram / Philips optional) |
| LED Quantity | 50 / 100 / 150 / 200 / 300 pcs |
| Luminous Efficacy | 130–140 lm/W |
| Luminous Flux | Contact specialist |
| CCT Options | 3000K–6500K (customizable) |
| CRI | Ra>80 |
| Product Size (L×W×H) | 415*170*70mm/ 495*190*70mm/ 595*210*80mm/ 645*230*80mm/ 730*250*80mm |
| Spigot Diameter | 50mm / 60mm (customizable) |
| Surge Protection | 4kV |
| Operating Temperature | -40°C ~ +50°C |
| Bracket Type | Fixed or adjustable angle |
| Lifespan | Up to 80,000 hours |
| Control Options | Standard / Radar sensor / Photocell |
| Customization | OEM / ODM supported |
FAQs
1. What LED type is used?
For the standard configuration, we have the SMD3030 LEDs. But we also support chip customization. You can choose brands such as Osram or Philips as per performance and your budget targets.
2. What is the housing and protection level for outdoor use?
The IP rating of Atlas Modular is IP65. The IP rating of Atlas Modular is IP65. It is a one-piece aluminum housing, which use silicone sealing.
3. What mounting sizes are supported?
For the 50w one, the size is 50mm. And for other powers it’s 60mm. Other diameters can be customized for existing poles or brackets.
4. Can it work with smart controls?
Yes. The light can be set up using photocell/optical sensor for dusk-to-dawn or radar sensing for the motion-based dimming modes.
5. Does it include surge protection for unstable grids or lightning-prone areas?
Yes. It supports 4kV surge protection to reduce driver/LED damage risk caused by voltage spikes.
6. What OEM/ODM customization do you support?
Common options are wattage, LED chip brand, CCT, size of the bracket/spigot, sensor set-up, logo labeling, packaging, and tailored spec sheet for tender.
