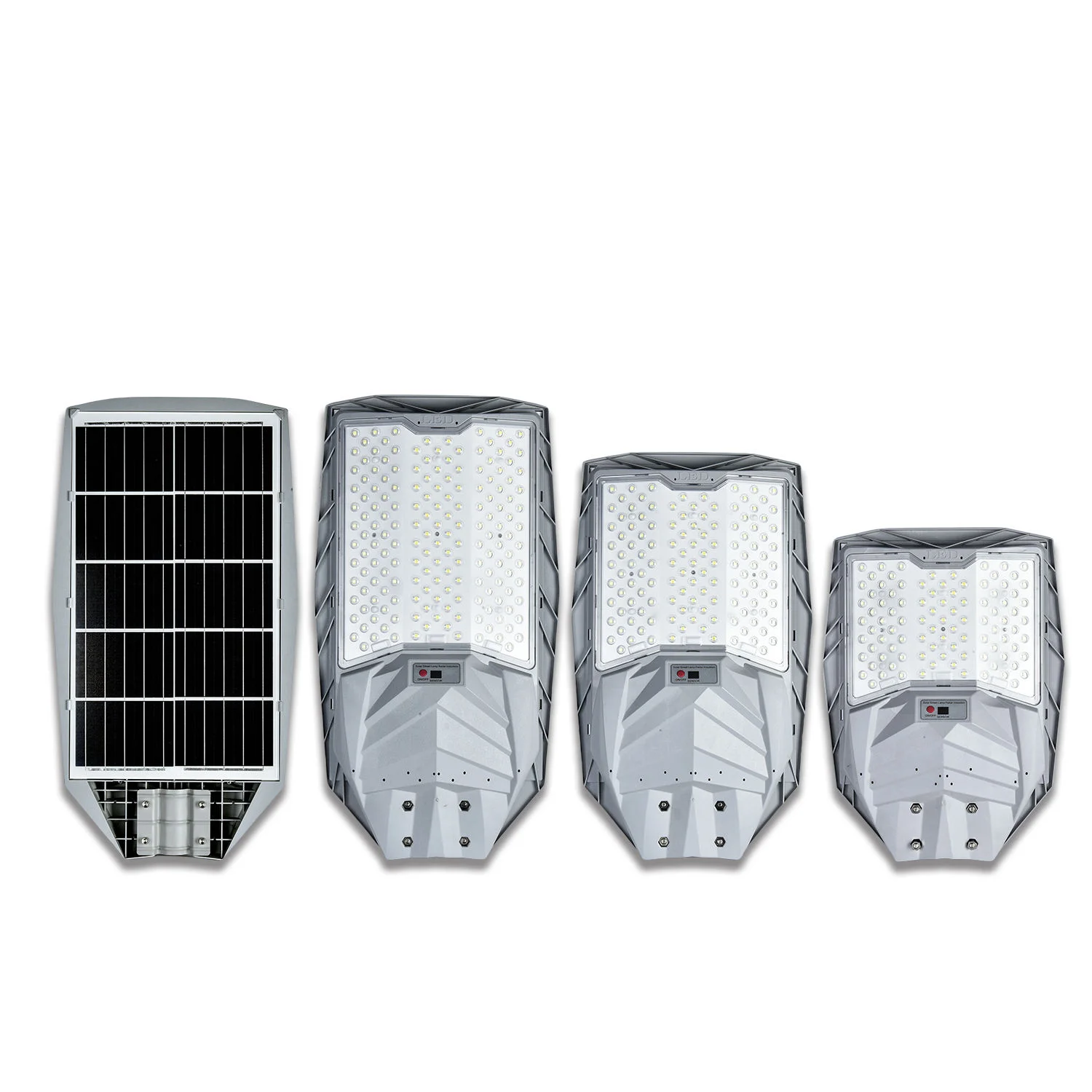

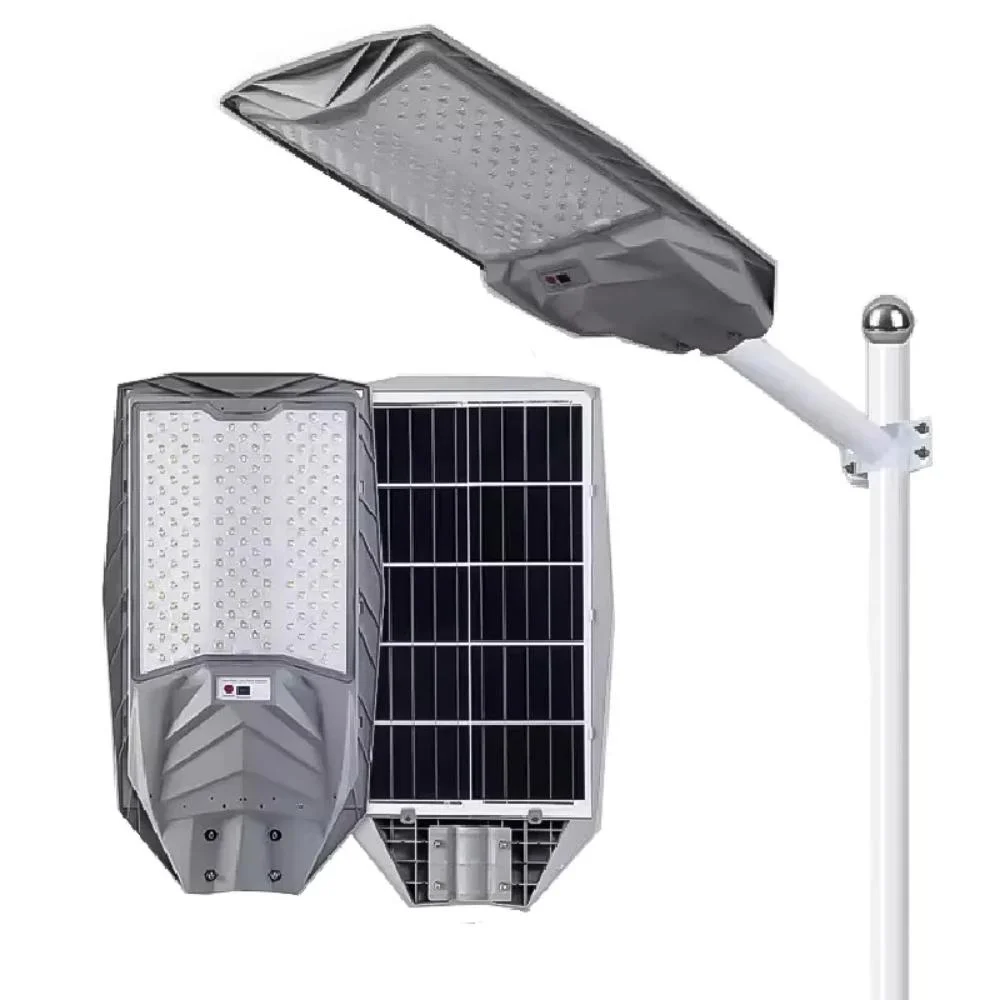

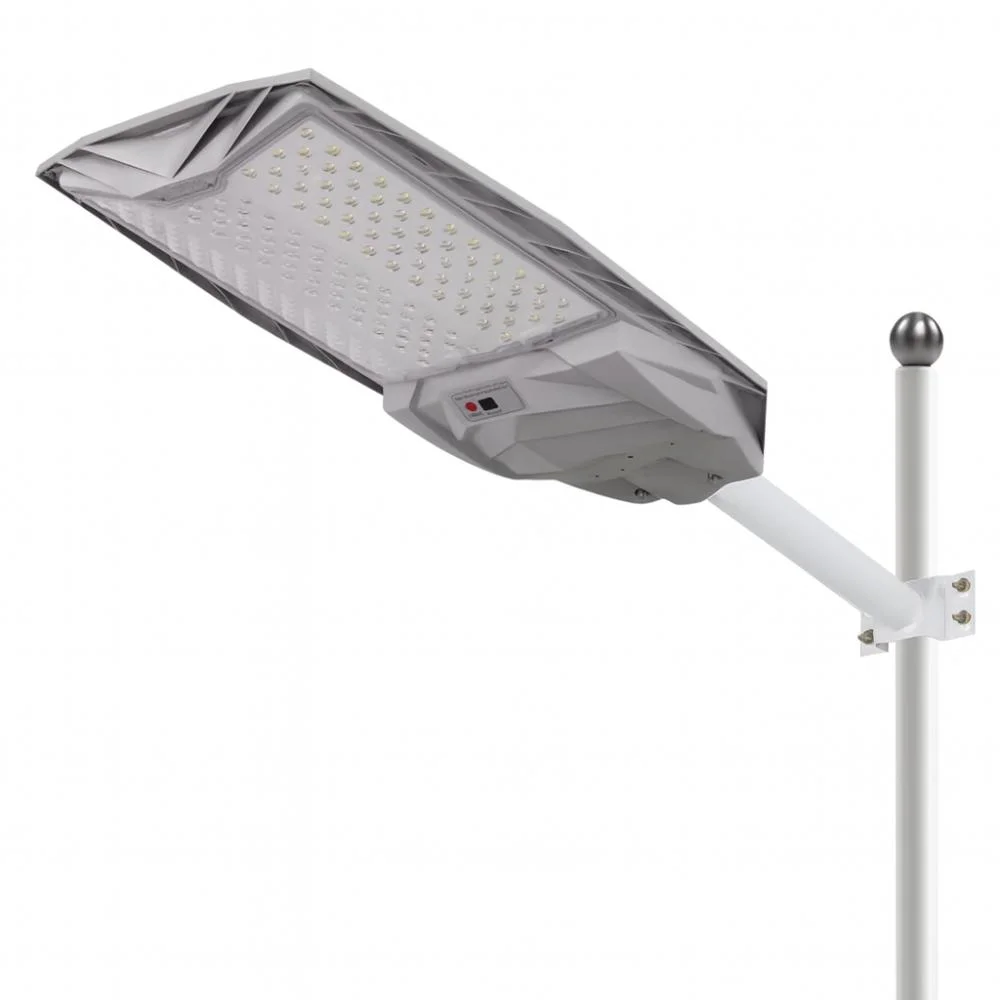

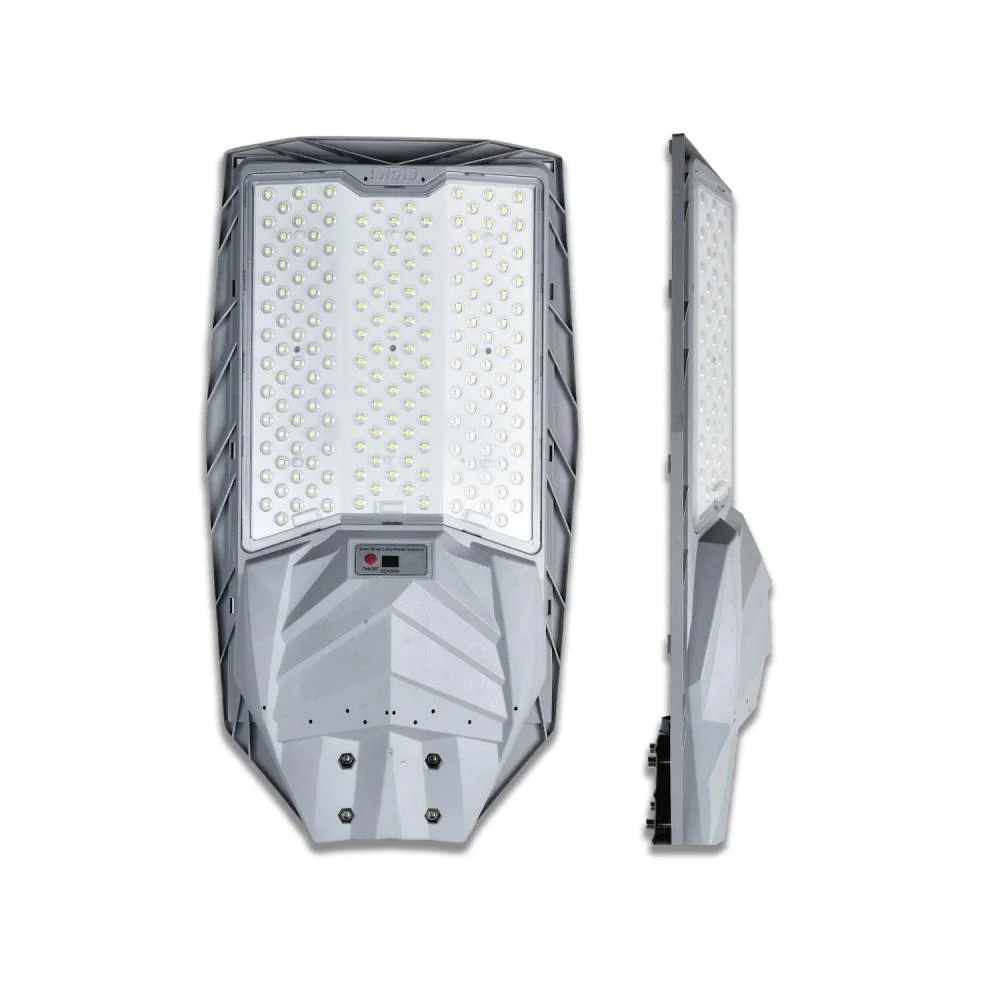

Casyoo Helios Core Series 100W-200W Solar Street Light with Ultra-Bright 5050 LEDs
$19.00
- Multi-wattage options: 100W / 150W / 200W all-in-one solar street lights for different road classes and pole heights.
- Long lighting time: 3.2V 10,000–20,000mAh batteries provide approx. 12–16 hours of continuous lighting per night.
- Efficient solar panel: 6V 15W / 20W / 25W mono solar panels, “charge whenever there is light” with weak-light trickle charging.
- High-brightness LEDs: 97 / 127 / 172 pcs SMD 5050 LEDs with three-sided light panels for wide-area illumination.
- IP67 weather protection: Fully sealed ABS housing, rain- and lightning-resistant for long-term outdoor use.
- Smart & remote control: Built-in light control + remote timing and constant-on modes to adapt to various scenarios.
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description
Casyoo Helios Core 100W/150W/200W all-in-one solar street lights are designed to provide reliable grid-free lighting for municipal roads, community streets, parking lots and industrial parks. To enable charging whenever there is light, this lamp uses a high-efficiency solar panel. And its smart light control and IP67 protection make it possible to stay operational even in rain, lightning or low-light conditions. Large Li-ion batteries, ultra-bright 5050 LEDs and three-sided light panels create wide, uniform coverage in cool, neutral or warm white. With customizable LED settings designed using robust ABS housings, corrosion-resistant hardware and plug-and-play installation, Helios Core is ideal for public works, ESCO projects and developers seeking a scalable, remotely controlled solar lighting solution with customizable LED configurations.
- High-efficiency solar harvesting – Using an A-grade 6V mono solar panels (15W/20W/25W) to convert more sunlight into energy, and ensures trickle charging under weak light to keep the battery topped up.
- Long-lasting, zero-bill lighting – Large 3.2V Li-ion batteries (10,000–20,000mAh) support 12–16 hours of continuous lighting at night, delivering truly grid-free operation and eliminating electricity bills for municipalities and property owners.
- Smart light and time control – The built-in light sensor automatically turns the light on at dusk and off at dawn. Meanwhile, the remote controller offers mode options, including dim and multi-step timing (with constant-on) to match actual situational requirements.
- High-output 5050 LED array – Up to 172 pcs ultra-bright 5050 LEDs with three-sided light panels, creating a wide, uniform coverage.It comes in cool, neutral or warm white to fit the various roadway and community conditions.
- Durable IP67 housing – Robust ABS housing, corrosion-resistant hardware and totally sealed optical chamber will protect the light against rain, dust and lightning. It can perform well even in harsh outdoor conditions.
- Cable-free, fast installation – All-in-one design combines the solar panel, battery, driver and LED module in a single body, so it needs no trenching and cabling work, and helps the contractor complete projects quickly.
- Stable thermal performance – ABS design and back-side heat dissipation ensure a safe operating temperature in the LED board and battery, which is both time-saving and increases maintenance.
- Customizable for projects – Supports project-specific LED brands, power settings and CCT options, enabling ESCOs, utilities and developers to be able to use the same solar platform across multiple-location sites and lighting classes.
Ideal For:
Municipal roads, community streets, industrial parks, parking lots, pathways and rural road upgrades where trenching and cabling are costly or difficult.
Specification
| Series | Helios Core |
| Power Range | 100W / 150W / 200W |
| Product Size | 550×400×90mm / 670×400×90mm / 750×400×90mm |
| LED Type | SMD 5050 |
| LED Quantity | 97 pcs (5050) / 127 pcs (5050) / 172 pcs (5050) |
| CCT Options | Cool white / Neutral white / Warm white |
| Battery Type & Capacity | 3.2V 10,000mAh / 3.2V 15,000mAh / 3.2V 20,000mAh |
| Continuous Lighting Time | Approx. 12–16 hours (after full charge) |
| Solar Panel Power | 6V 15W / 6V 20W / 6V 25W |
| Solar Panel Size | 390×335mm / 515×335mm / 590×335mm |
| Ingress Protection | IP67 |
| Housing Material | High-quality ABS, corrosion-resistant, anti-rust, high-temperature resistant |
| Lighting Modes | Intelligent light control + remote timing + constant-on |
| Charging Mode | Daytime solar charging, weak-light trickle charging |
| Optical Design | Three-sided light panel for wide illumination area |
| Installation | All-in-one, cable-free pole or bracket mounting |
| Customization | Yes |
FAQs
1. How long can the light operate after a full charge?
With 3.2V 10,000–20,000mAh batteries, the system can provide about 12–16 hours of lighting per night under normal operating conditions and properly configured working modes.
2. Can the light work on cloudy or rainy days?
Yes. The light supports charging whenever there is light, and weak-light trickle charging helps maintain battery capacity. The built-in controller will also optimize output to extend backup time.
3. What are the light's control modes?
The light supports automatic light control (on at dusk, off at dawn), remote timing, dimming and constant-on modes. Users can choose suitable lighting modes via the remote controller based on traffic flow and safety requirements.
4. What color temperatures are available?
Helios Core can be supplied in cool white, neutral white or warm white. You can choose a suitable color that matches local standards for roads and residential areas.
5. Is it difficult to install this solar street light?
No. This all-in-one light combines the solar panel, battery and LED module in one housing. There is no need for external cabling or control boxes.
6. Can you customize LED brands, power or other specifications for projects?
Sure. We can customize LED brands (including other premium options), wattage, CCT, working modes and even appearance details according to project requirements or tender specifications.
