Casyoo QB003 120W LED Grow Light Panel for Grow Tents & Racks
$89.00
- High efficiency 2.9 μmol/J
- High intensity 760 μmol/m²/s @30cm (235 @60cm)
- Full-spectrum for veg + flower 3500K + 660nm
- Premium components Samsung LM301B LEDs + Meanwell driver
- Smooth dimming 1–10V, 10–100%
- Grow-room ready IP54 + aluminum heatsink cooling
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description
The QB003 120W LED Grow Light Panel is a compact, high-efficacy fixture designed for grow tents, racks, and small cultivation rooms. Its even light distribution delivers full-spectrum light equally to plants with uniform intensity.
The PPFD is reported at 760 µmol/s/㎡ at 30cm and an efficacy of 2.9 µmol/J, which promotes higher yields. It emits a full-spectrum output that has the perfect combination of spectrums- Samsung LM301B white (3500K) and deep red (660nm); essential for both vegetative growth and flowering stages.

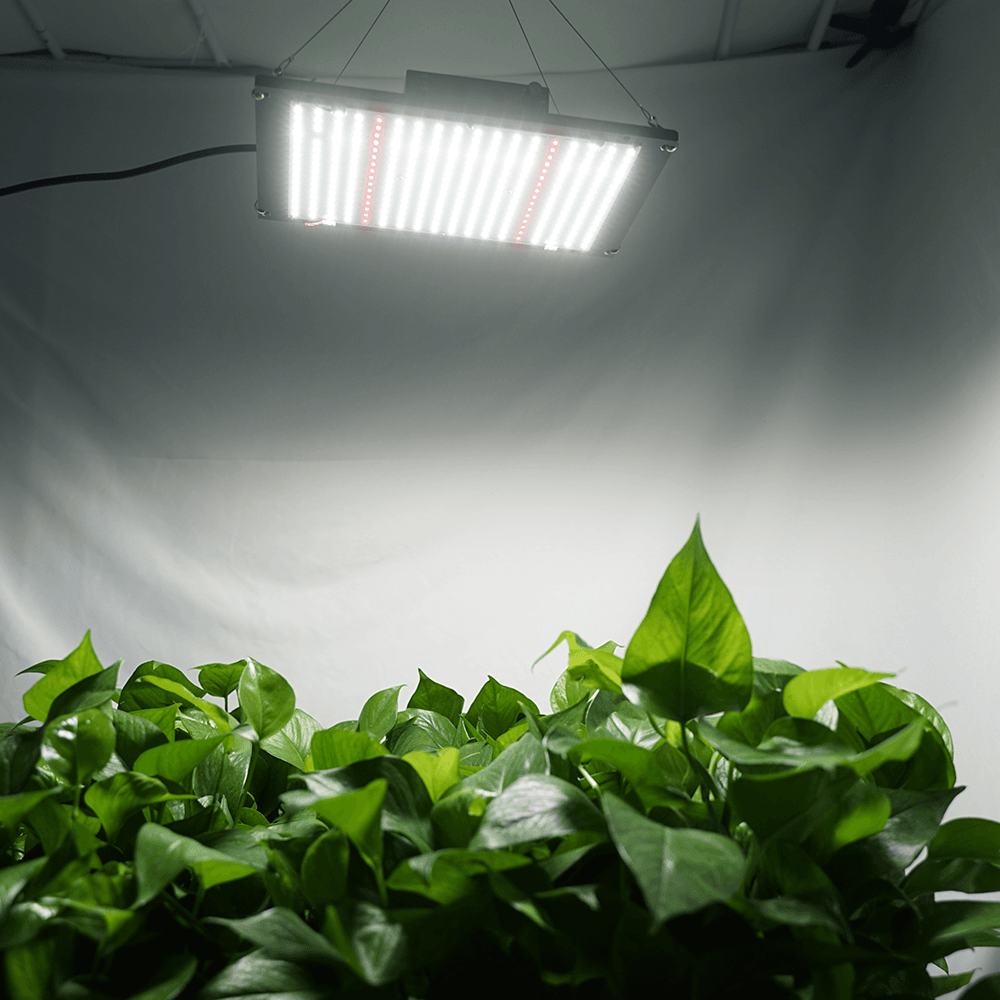

The light fixture is perfect for grow tents, small growing spaces, vertical racks, and it can also be used as supplemental greenhouse lighting. When hung at 30cm height, it delivers 760 µmol/s/㎡ PPFD, and at 60cm height it provides 235 µmol/s/㎡ for broader coverage.
- High Efficacy & Strong Output: QB003 120W grow light features Samsung LM301B diodes with high energy efficient Meanwell driver delivering 2.9 µmol/J photon efficiency. At 30cm hanging height, it provides 760 µmol/s/㎡ PPFD for compact grow tents and small cultivation rooms. The high photon efficiency brings excellent light output for only 120W of power consumption, making it an energy-saving solution for indoor growers.

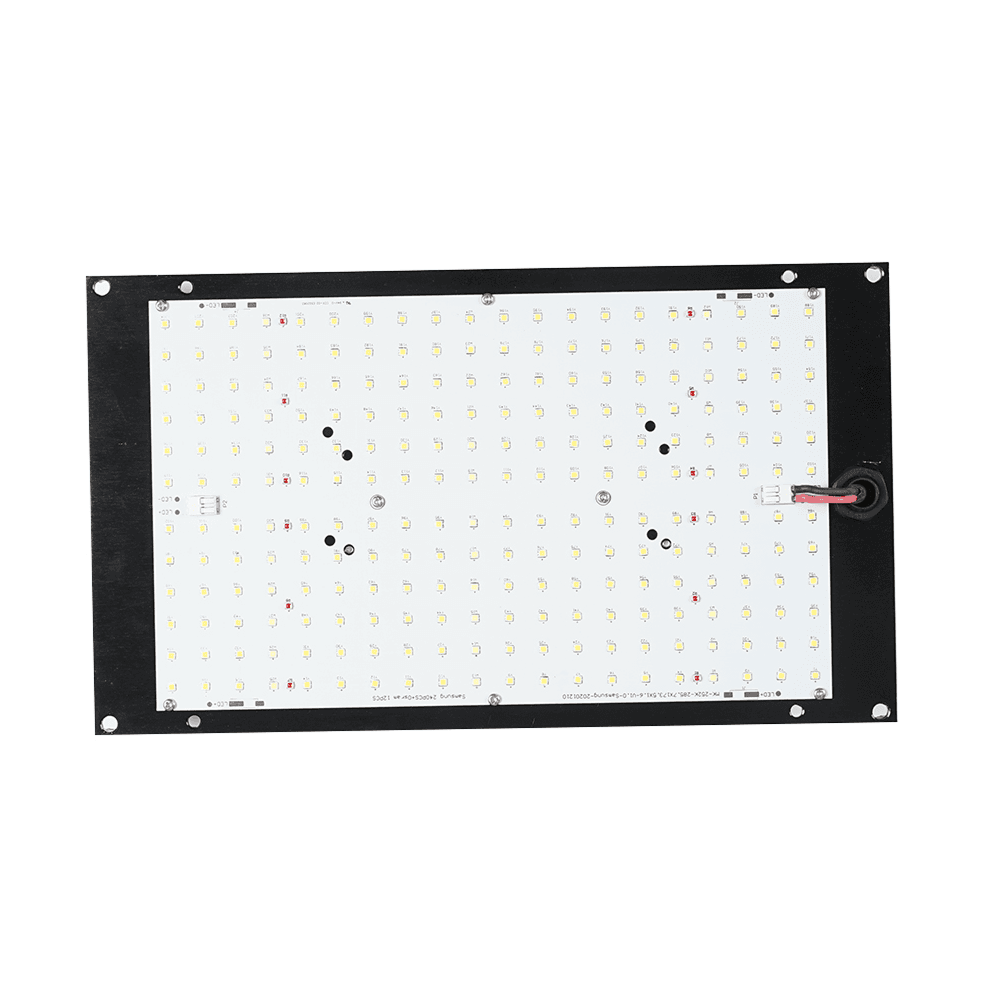

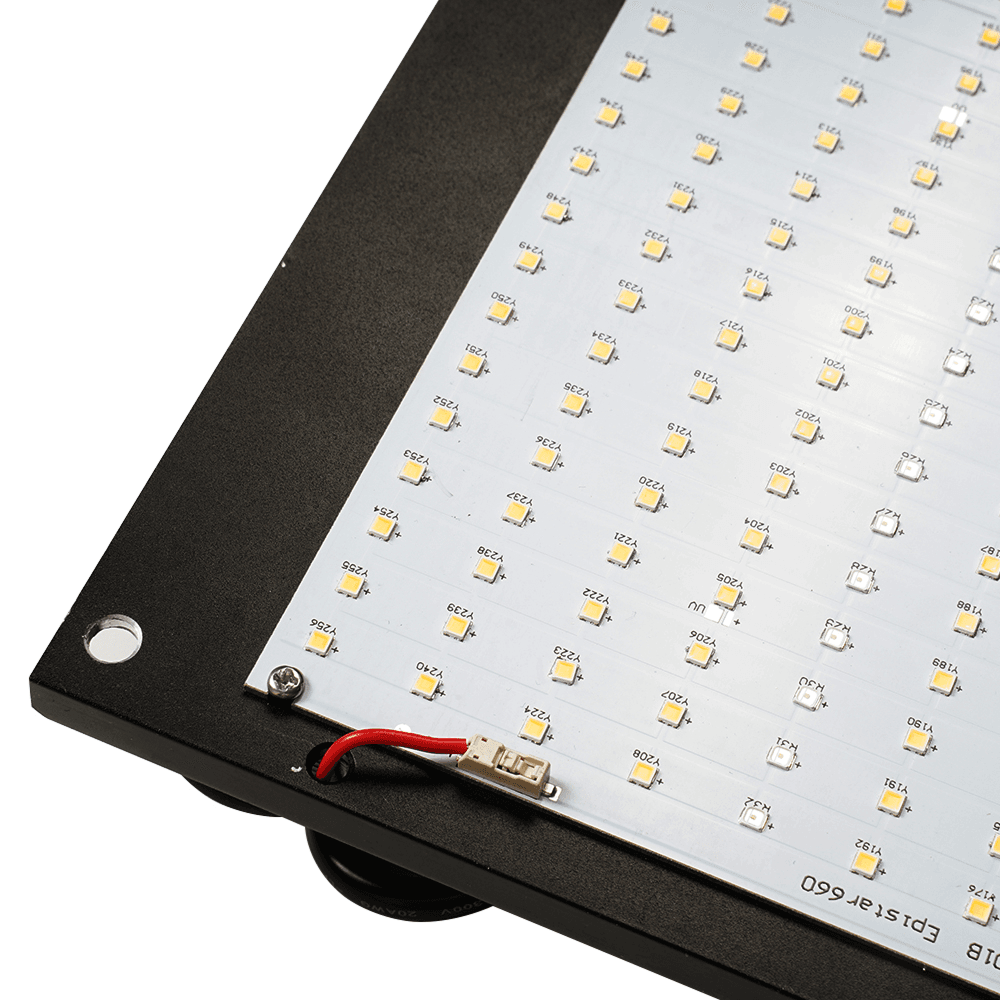

- Full Spectrum & Even Distribution: QB003 full spectrum (3500K white + 660nm deep red) supports both vegetative growth and flowering periods. The 272pcs Samsung LM301B combined with 16pcs 660nm LED chips spread across the panel surface ensure even light distribution with uniform intensity. This configuration delivers consistent PPFD values across the coverage area for balanced plant development.
- Good Heat Dissipation & Moisture Resistance: No fan no noise. The 10mm aluminum heatsink ensures efficient heat dissipation and extends LED lifespan. With IP54 waterproof rating, our LED grow light can be used in humid grow tent environments without worry about moisture damage.
- Dimming Design: This LED grow light is dimmable with 1-10V function, you could make sure to provide the right amount of light in every stage of plant growth. The dimming function adjusts light intensity from 10% to 100% at liberty, especially beneficial for seedling, vegetative, and flowering stages in small indoor growing spaces.

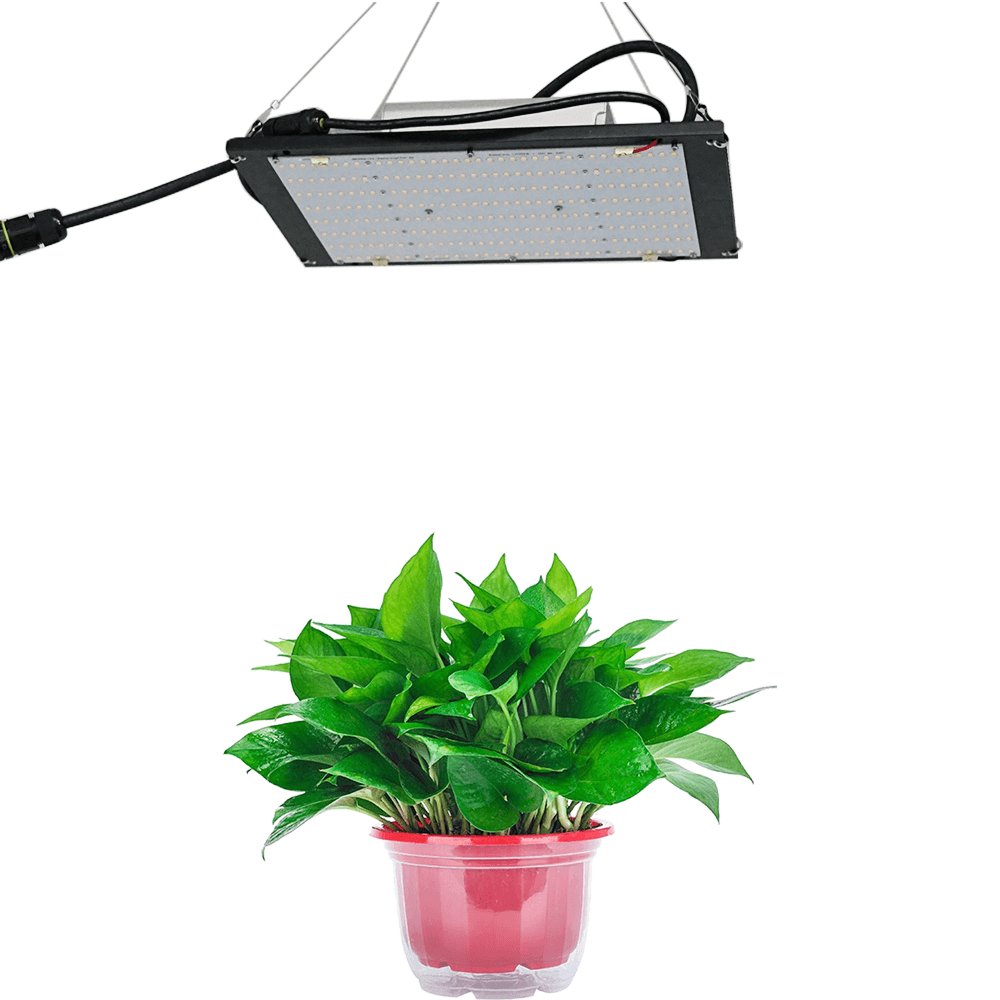

- Compact Design & Easy Installation: Plug and play. The isolated Meanwell driver works with AC100-240V input voltage. Its compact size and slim design make it a great choice for applications with tight spaces in tents, shelves, closets, and vertical racks.
Ideal For:
- Grow tents
- Vertical racks & multi-tier shelving
- Seedling and clone areas
- Small grow rooms
- Supplemental greenhouse lighting
- Under-canopy / side supplemental lighting
Specification
| Item Code | CSY-QB003-120W |
| Light Source (LED Chips) | 272pcs Samsung LM301B 3500K+16pcs 660nm led chip |
| Working voltage | AC100-240V |
| Frequency | 50/60Hz |
| Power Factor (PF) | > 0.9 |
| Dimensions | 340X195X50MM |
| IP Rating | IP54 |
| Spectrum | white+660nm |
| PAR | 760w/m2 (30cm), 235w/m2 (60cm) |
| PPFD | 160 μmol/m²/s (30cm), 50 μmol/m²/s (60cm) |
| PPE (Photon Efficacy) | 2.9 μmol/J |
| Luminous efficacy | 48350 lux (30cm), 14800 lux (60cm) |

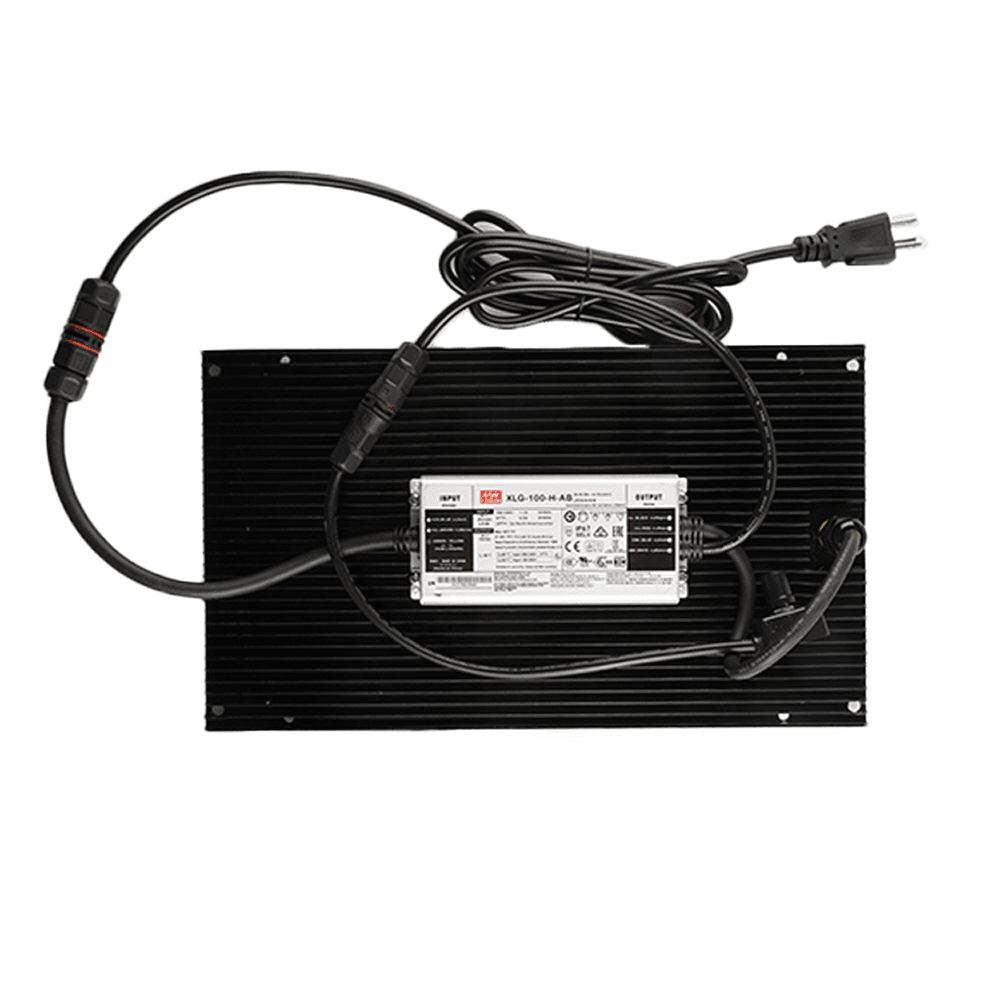

| LED Driver | Isolated Meanwell LED Driver |
| Working temperature | -20-50℃ |
| Heat Sink | 10mm Aluminum heatsink |
| Dimming Function | 1-10V 10%-100% dimming |
| Customization | Length, spectrum, color, packaging, branding services, etc. |
FAQs
1. What are the advantages of using QB003 grow light over other similar panels?
The QB003 120W LED grow light panel uses Samsung LM301B LEDs that deliver full-spectrum light for all growth stages, with 2.9 μmol/J efficiency and even light distribution compared to other similar panels. This light helps plants grow faster and healthier with better yields.
2. How do the Samsung LM281B LEDs improve performance?
In summary, Samsung LM281B LEDs are trusted horticulture-grade diodes known for stable output and efficiency. With 864 LEDs on the QB004 board, they help deliver strong photon output, improved efficacy and reliable performance across long run times.
3. How does the 660nm deep red benefit plant growth?
The 660nm deep red spectrum is essential for photosynthesis and flowering. Combined with 3500K white LEDs, it promotes stronger flowering response, increased bud development, and higher yields during bloom stage while supporting healthy vegetative growth.
4. How does the dimmable feature support indoor plant growth?
The dimmable feature of QB003 allows adjusting the brightness from 10% to 100% to provide optimal light intensity for different growth stages of indoor plants, promoting healthy development.
5. What is the coverage area of QB003 LED grow light panel?
The QB003 grow light provides full-spectrum lighting that is ideal for all growth stages. At 30cm hanging height it delivers 760 µmol/s/㎡ PPFD for intensive coverage, and at 60cm height provides 235 µmol/s/㎡ for broader coverage. Ideal for small grow tents, vertical racks, and compact indoor growing spaces.
6. Is QB003 suitable for humid grow environments?
Yes, QB003 features IP54 waterproof rating that protects against moisture and dust. With waterproof protection, our LED grow light can be used in humid grow tent and greenhouse environments without worry.
