Casyoo SP006 1000W Spider LED Grow Light Dimming for 4×4/5×5 Grow Spaces
$538.00
- 1000W XL 10-bar commercial build
- High output & efficiency: 2,757 μmol/s PPF, 2.65 μmol/J
- Wide coverage: 4’×4′ to 5’×5′
- Samsung full-spectrum + UV/Far-Red for growth/flowering
- Built for big yields & uniform canopy on large tables/trays
- IP67, 0–100% dimming + PWM/0–10V
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description
The Casyoo SP006 1000W Spider LED Grow Light is an XL 10-bar commercial light with an exceptional photon output of up to 1,000 watts. Covering 4’×4′ to 5’×5′ grow areas, the SP005 uses Samsung LEDs that blend 3000K and 4000K white with enhanced red and UV for vigorous growth and even canopy coverage.
The SP006 1000W Spider LED Grow Light is best suited to commercial cultivation through large tables or trays, and it provides the greatest potential for increased coverage, deeper penetration and high yields. With a PPF of 2,757 µmol/s and an efficacy of 2.65 µmol/J, the SP006 sits at the top of its series for meeting professional growers needs that demand high photon output.
Its broad footprint and premium 6063 aluminum housing make it readily adaptable to larger commercial layouts. The 0-100% knob dimmable with support for external PWM/0-10V dimming signal adds to the effectiveness of the SP006.
- High-Output Commercial Power: With 1,000W output and 2,757 μmol/s PPF, growers are no longer limited by underpowered fixtures and achieve high-intensity lighting for large-scale cultivation, with PPFD of 1,720 μmol/(m²·s) at 40cm and 1,357 μmol/(m²·s) at 60cm.
- Superior Efficiency for Big Runs: All commercial operations running multiple SP006 fixtures will maximize yields while keeping electricity costs low. The 2.65 μmol/J efficacy allows growers to deliver maximum photon output without excessive power consumption, reducing operational expenses and speeding ROI for large-scale cultivation facilities.

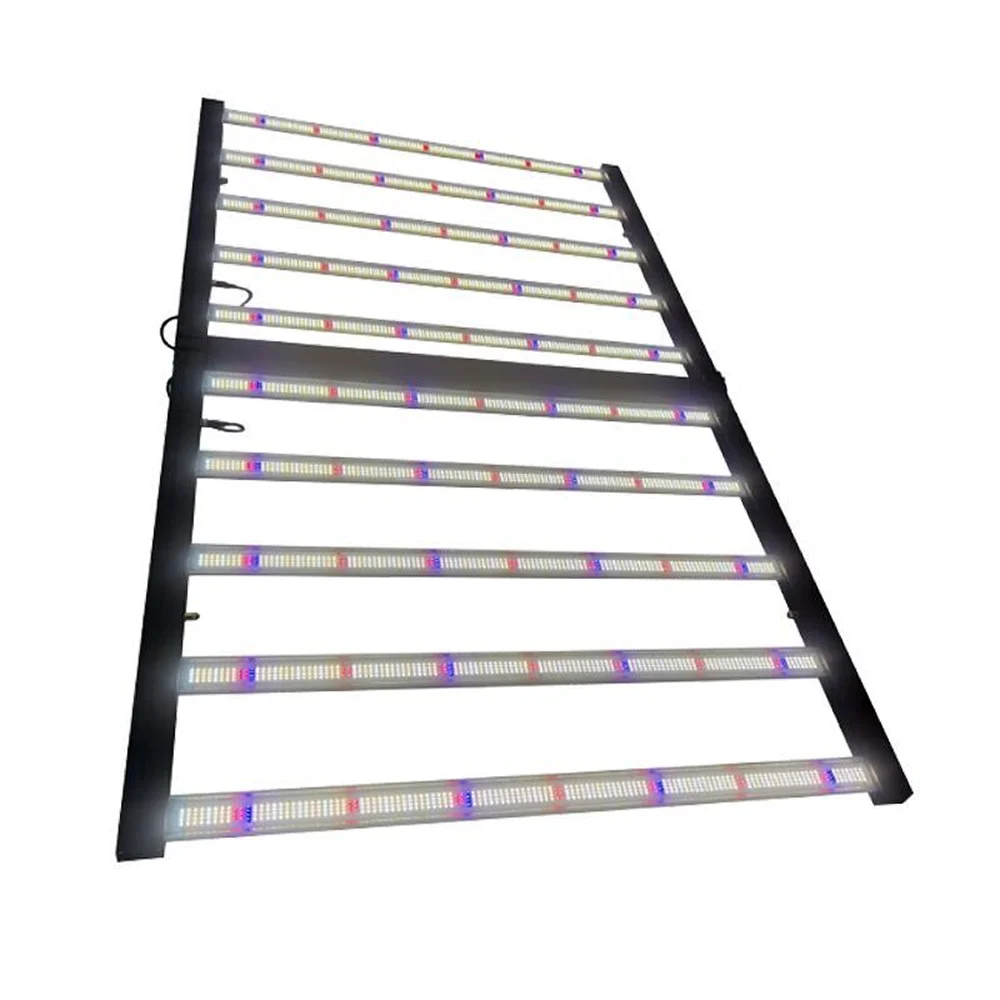

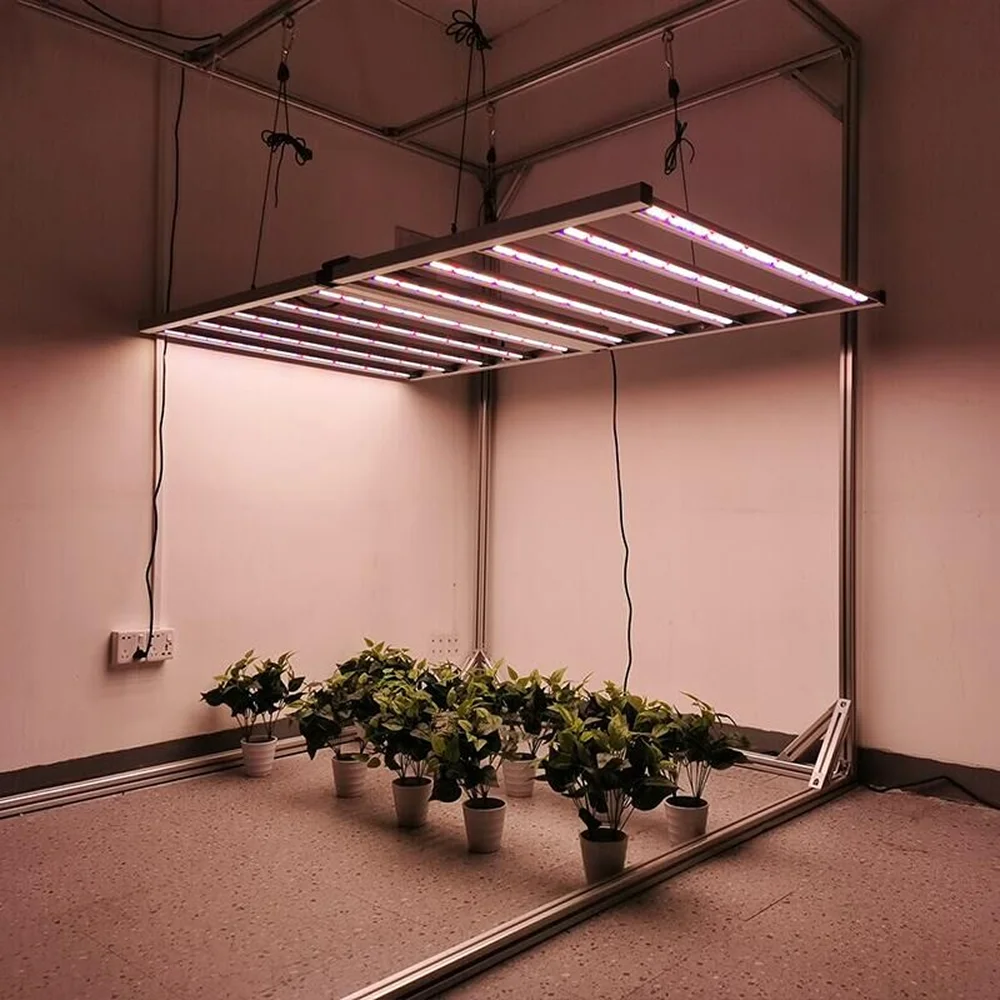

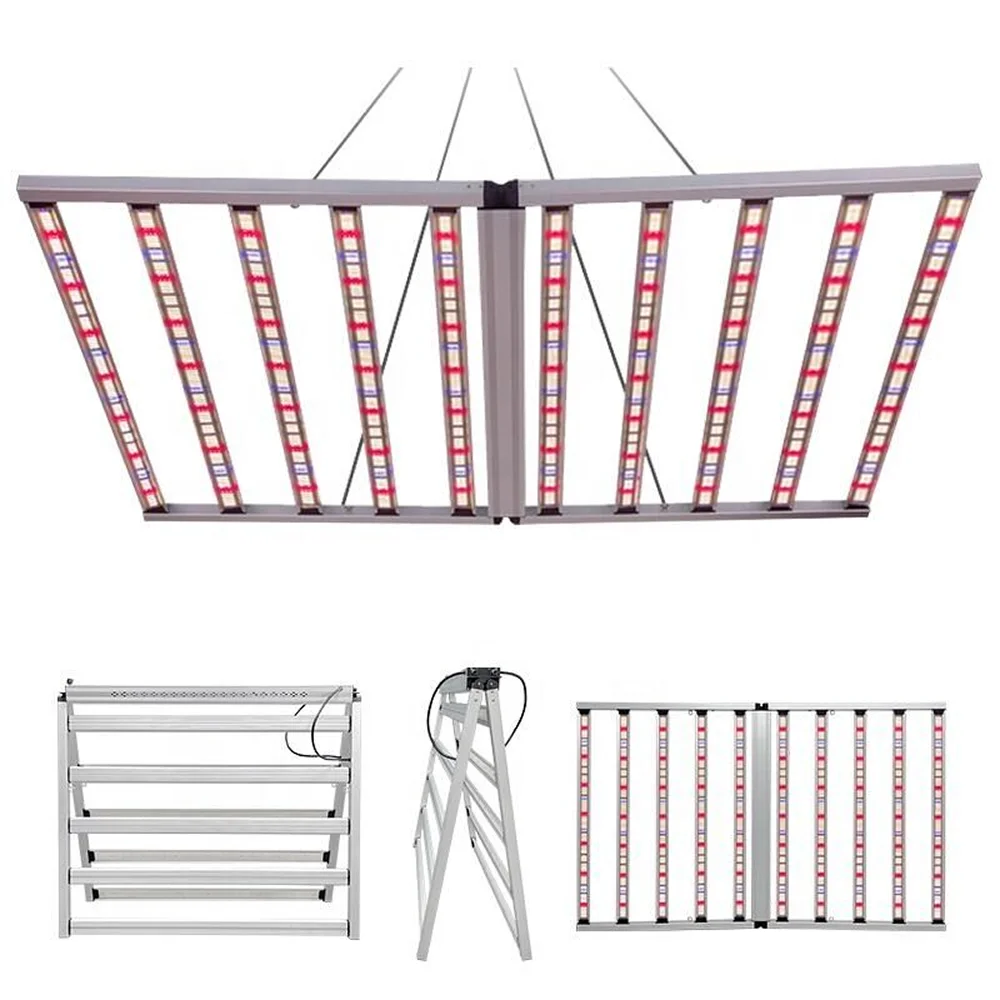

- XL 10-Bar Wide Canopy Coverage: Avoid hot spots and uneven growth with the extra-large 10-bar spider design, and illuminate your 4’×4′ to 5’×5′ grow area with confidence thanks to its uniform light distribution and 1060×1060mm footprint for complete canopy coverage.
- Samsung Full Spectrum + UV/Far-Red Boost: A premium mix of optimized spectrum ratios such as 3000K white, 4000K white, 660nm red, and enhanced 730nm far-red plus 395nm UV. Take control of your growth cycle with full spectrum coverage by providing plants the ideal light recipe for vigorous vegetative growth and enhanced flowering with ease and reliability.

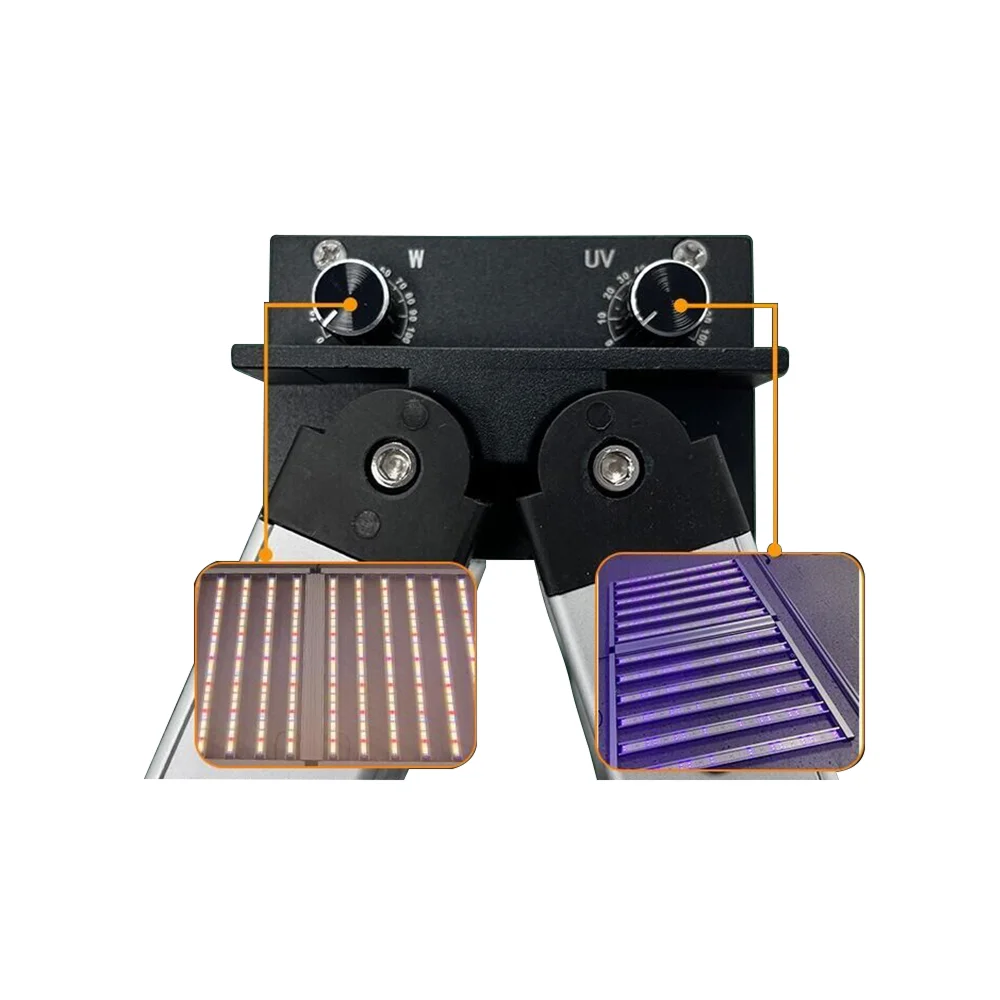

- Commercial-Grade Build & Flexible Dimming: Easily adjust light intensity from 0-100% for different growth stages or specific cultivation needs with this commercial fixture. Control the brightness conveniently via the built-in knob dimmer or integrate with external controllers using PWM/0-10V signals, while the IP67 rating and premium aluminum housing ensure reliable operation in demanding grow environments.
Ideal For:
- Commercial cannabis facilities
- Large tables, trays, and rolling benches
- Indoor CEA vegetable production
- High-density flowering rooms
- Multi-fixture controlled grow rooms
- Research, trials, and propagation facilities
- Select greenhouse supplemental lighting zones
Specification
| Item Code | CSY-SP006-1000W |

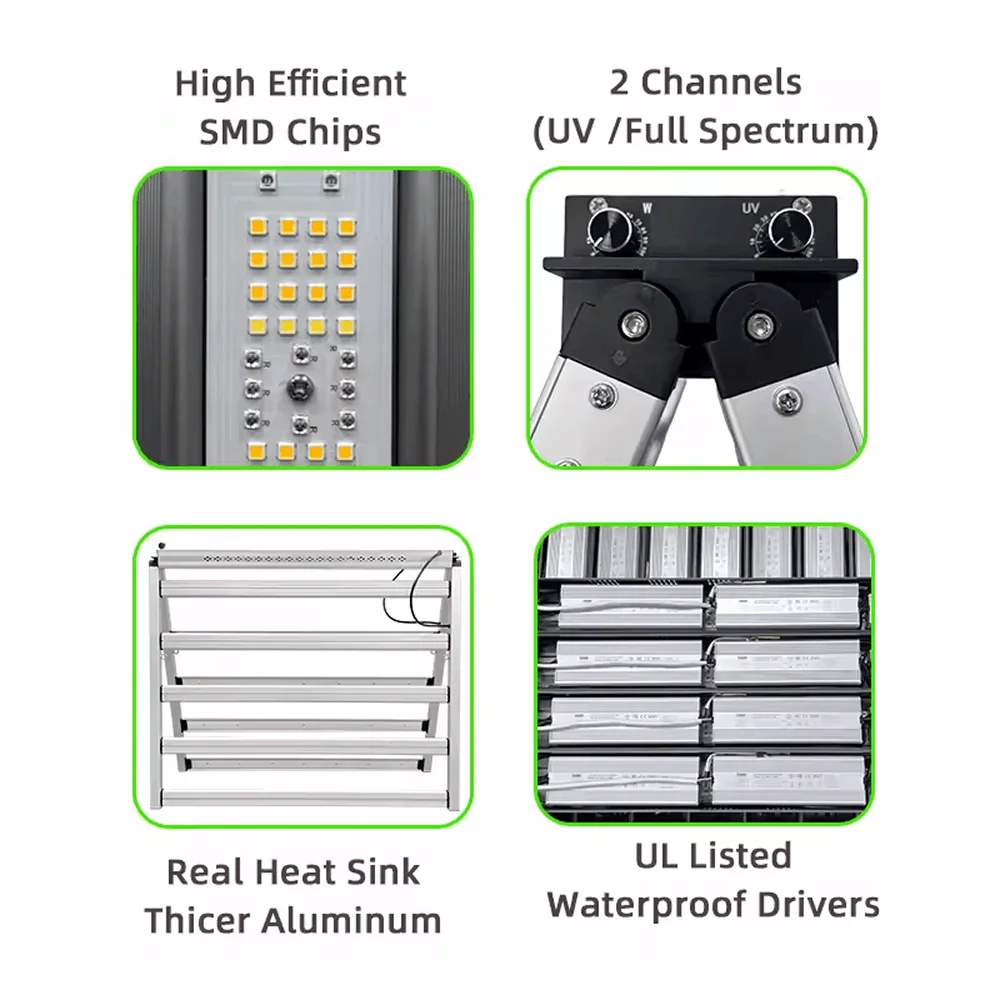

| Light Source (LED Chips) | Samsung 126pcs 3000k+126pcs 4000k+54pcs 660nm+18pcs 730nm+18pcs 395nm |
| Frequency | 50/60Hz |
| Light Distribution | 120 degree |
| Power Factor (PF) | >0.92 |
| Dimensions | 1060*1060*32MM |
| IP Rating | IP67 |
| Spectrum | Full spectrum |
| PPF value | 2757 |
| PPFD | 1720 μmol/m²/s (40cm), 1357 μmol/m²/s (60cm) |
| PPE (Photon Efficacy) | 2.65 µmol/J |
| Illuminance | 108300 lux (30cm), 69500 lux (60cm) |
| LED Driver | JUSON SOSEN |
| Dimming Function | 1-10V 10%-100% dimming |
| Net weight | 19KG |
| Lifetime | >54,000 hours |
| Customization | Length, spectrum, color, packaging, branding services, etc. |
FAQs
1. What types of growing applications can I use the SP006 for?
Get maximum efficiency and yield potential with the ability to cultivate a wide range of crops, whether you’re running a commercial cannabis facility or large-scale vegetable operation. The SP006 is highly adaptable for all types of indoor cultivation, including:
– Commercial cannabis facilities
– Indoor CEA and large-scale vegetable production
– Research, trials, and propagation rooms
– Select greenhouse supplemental applications
Its 10-bar architecture and high-output performance support consistent results across large tables and trays.
– Commercial cannabis facilities
– Indoor CEA and large-scale vegetable production
– Research, trials, and propagation rooms
– Select greenhouse supplemental applications
Its 10-bar architecture and high-output performance support consistent results across large tables and trays.
2. Can I configure the SP006 to work for my cultivation needs?
Yes! The SP006 is fully adjustable via 0-100% knob dimming or external controllers. Here, you can adjust light intensity for different growth stages and make updates via PWM/0-10V signals without physically accessing each fixture in large-scale operations.
3. Can I integrate the SP006 with my multi-fixture system?
Yes, the SP006 is integration-ready with PWM/0-10V dimming support. You can connect multiple fixtures to a central controller for synchronized dimming across your entire facility.
4. Is the SP006 suitable for demanding grow environments?
Yes. We utilize IP67 waterproof rating and premium 6063 aluminum housing to protect the fixture in high-humidity cultivation environments. The aluminum construction provides superior heat dissipation while JUSON SOSEN drivers ensure >0.92 power factor for reliable, long-term operation.
5. How does the SP006 improve commercial growing operations?
The SP006 provides maximum yield potential with high PPFD of 1,720 μmol/(m²·s) at 40cm, optimizing light coverage and improving plant development. With the 10-bar spider design installed across commercial tables, growers can improve canopy uniformity, energy consumption, and light penetration, ensuring consistent growth and reducing operational costs.
6. Can the SP006 support different growth stages and canopy penetration?
Yes. The SP006 supports advanced spectrum delivery and deep canopy penetration, helping you achieve maximum yields. The fixture is engineered to deliver uniform PPFD distribution and respond to different cultivation needs. Key features include:
– Full spectrum delivery: 3000K + 4000K white for vegetative growth, 660nm red for flowering
– Deep penetration: 1,720 μmol/(m²·s) PPFD at 40cm reaches lower canopy levels
– UV and far-red boost: 395nm UV for terpenes, 730nm far-red for flowering transitions
– 10-bar spider design: Eliminates hot spots for uniform canopy coverage
– Flexible dimming: 0-100% control via knob or PWM/0-10V signals
The SP006 covers 4’×4′ to 5’×5′ areas, so commercial growers can maximize space efficiency and verify consistent light distribution across large tables. These features help improve harvest quality, ensure energy efficiency, and reduce lighting-related stress.
– Full spectrum delivery: 3000K + 4000K white for vegetative growth, 660nm red for flowering
– Deep penetration: 1,720 μmol/(m²·s) PPFD at 40cm reaches lower canopy levels
– UV and far-red boost: 395nm UV for terpenes, 730nm far-red for flowering transitions
– 10-bar spider design: Eliminates hot spots for uniform canopy coverage
– Flexible dimming: 0-100% control via knob or PWM/0-10V signals
The SP006 covers 4’×4′ to 5’×5′ areas, so commercial growers can maximize space efficiency and verify consistent light distribution across large tables. These features help improve harvest quality, ensure energy efficiency, and reduce lighting-related stress.
