Casyoo Aegis Thin LED Tunnel Light | IP66 Waterproof Outdoor Floodlight | 30W-400W

$19.58

  • 30W – 400W: Comprehensive power range
  • IP66 Waterproof: All-weather resilience
  • 120–130 lm/W: High luminous efficiency
  • Aviation Aluminum: Superior heat dissipation
  • 180° Adjustable: Flexible installation angles
  • 80,000h Lifespan: Long-term project reliability
  • Anti-Fog Breather: Eliminates internal moisture
casyoo-certificates
- +

Description

The Aegis Thin LED tunnel light series is designed to offer high-performance lighting to challenging conditions, such as high-speed tunnels and sports stadiums, large-scale industrial warehouses, transport and railways. These floodlights are made of heavy-weighted aviation aluminum, with a special fin-type heat dissipation pattern which guarantees maximum thermal control and a spectacular 80000 hours of durability. The system has been integrated with high-brightness Epistar SMD2835 to achieve a high-intensity light source with a uniform distribution, with minimal decay, low safety, and visibility over long distances. The Aegis Thin, with its IP66 waterproof and advanced breather design that removes internal moisture, is durable in the worst weather conditions. Casyoo provides a versatile and long-lasting light source with a 180° adjustable bracket that has many options of beam angles to be customized to meet any professional project requirement.

  • IP66 Weatherproof and Anti Fog – Built-in breathing valve maintains the internal pressure and removes the internal misting to maintain the constant view in humid or rainy conditions.
  • High-Efficiency Epistar SMD2835 – Provides 120-130 lm/W of high-CRI light and provides vivid color rendition and stable brightness with minimal lumen depreciation.

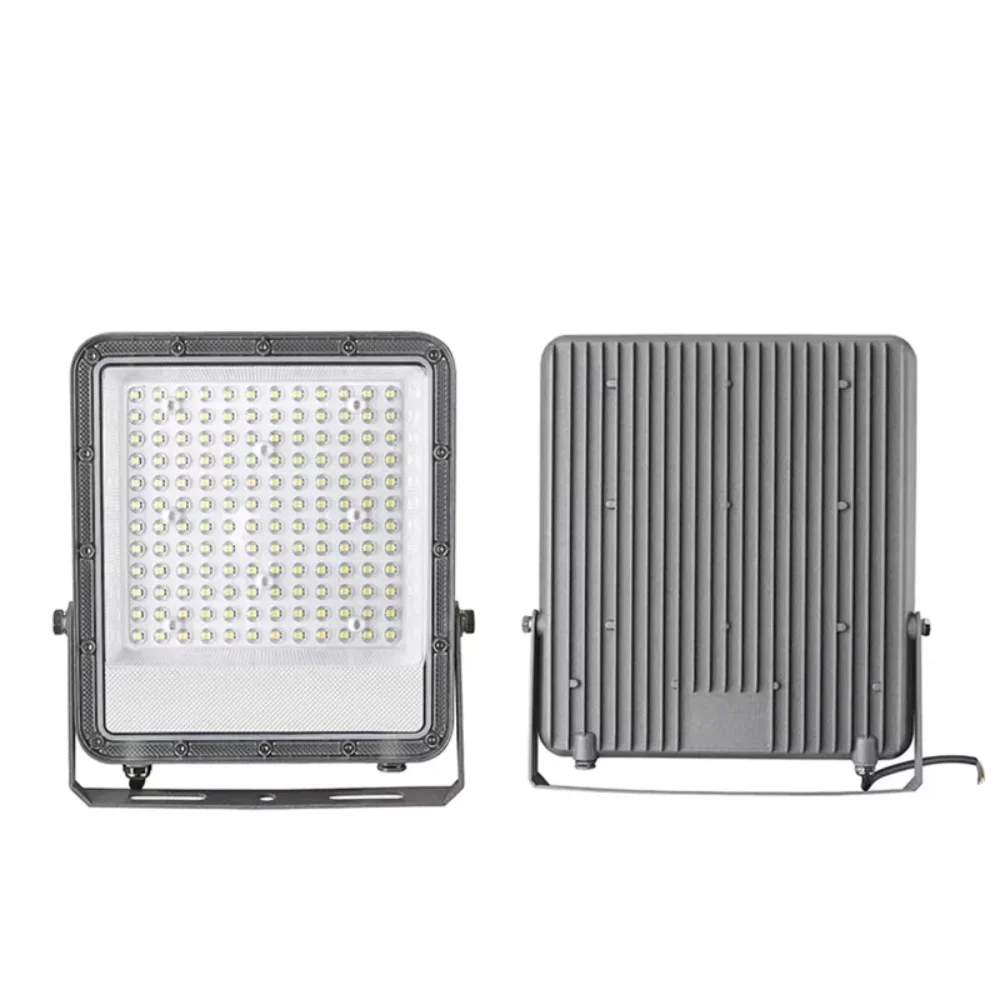

  • Developed Thermal Management – The aviation aluminum is fin-shaped with a fin-style cooling structure that maximizes surface area to accelerate heat dissipation and extend lamp life.
  • 180 ° Flexible Mounting – This is a powerful adjustable mount which can be installed on the wall, ceiling or the ground with careful adjustment of angles to give specific professional lighting.
  • Durability, Industrial Grade – Aviation-grade housing made of corrosion-resistant material and screw outlets that are waterproof enhance connection loss, and are highly robust in the harsh outdoor environment.
  • Multipurpose Optical Precision – The product also comes in various beam angles (30°/60°/90°/120°) to ensure an even distribution of light free of glare in both narrow tunnels and wide plazas.

Ideal For:

Tunnels, subways, high-mast plazas and roadside poles, airports, large-scale engineering projects, industrial workshops, factories, warehouses, logistics centers, and indoor or outdoor stadiums.

Specification

SeriesAegis Thin
Product TypeLED Tunnel / Flood Light Module
Power SupplyAC
Input VoltageAC100–277V
Power Options30W / 50W / 100W / 150W / 200W / 300W / 400W
Luminous Efficacy120–130 lm/W
LED TypeEpistar SMD2835(Other brands optional)
LED Quantity49 / 72 / 144 / 224 / 288 / 440 / 576 pcs
Beam Angle30° / 60° / 90° / 120°
CCT Options3000K–6500K (Default 6500K)
CRIRa > 80
Power Factor> 0.95
IP RatingIP66
Housing MaterialThickened Aviation Aluminum (Gray/Customizable
Lifetime80,000h
Mounting OptionsBracket/Wall-mounted/Ceiling-mounted
Dimensions160*139*25mm/180*165*25mm/238*217*25mm/296*270*25mm/335*305*25mm/378*345*30mm/425*388*31mm
Bracket Adjustment180° adjustable aiming
CustomizationOEM/ODM Supported (Color, CCT, Configuration)

FAQs

1. Why is the Aegis Thin series appropriate to extreme outdoor conditions?
It is IP66 rated and made of aviation aluminum, which is resistant to corrosion. One of the differences is that there is an inbuilt breather valve that balances between inside and outside pressure and this practically removes internal mist and moisture to ensure consistent clarity in rain or snow.
The special fin-style heat dissipation structure is applied to make the most out of the contact surface with air. This considerably reduces operating temperatures, enabling the Epistar chips to operate in high brightness and decay less over 80,000 hours.
Yes, absolutely. Every unit is fitted with a 180 ° rotatable reinforced bracket. This will enable you to adjust the angle of the illumination to the finest detail, whether you are putting it on a high-mast or a tunnel ceiling, or a wall at a stadium.
We do. We also encourage OEM/ODM customization, such as the power (30W-400W), color (3000K-6500K) and the different beam angles (30°/60°/90°/120) to make the lighting fully fit into the technical requirements of the project.
The Aegis Thin series is made to be of high output and low consumption. It provides 120-130 lm/W efficacy with Power Factor (PF) of above 0.95, which means you get the peak of the light and cut the energy bills by a huge margin against the conventional HID lamps.
Absolutely. We offer precision laser marking of the company logo on the lamp body. As well, we can personalize the outer package, labels, and instruction manuals as per your brand identity when a quantity of items is ordered.
