Casyoo Atlas Ridge 50W–200W LED Roadway Light | IP65 Aluminum
$39.00
- 50W / 100W / 150W / 200W: Multi-wattage options
- 120–130 lm/W: Bright, efficient output
- Ra>80: Clear color visibility
- AC100–265V, PF>0.95: Stable power quality
- IP65 Aluminum Housing: Outdoor weatherproof
- 4kV Surge Protection: Grid-spike resistant
- -40 to +50°C: All-season operation
- 50/60mm Spigot + Adjustable Bracket: Fast fit & aiming
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description

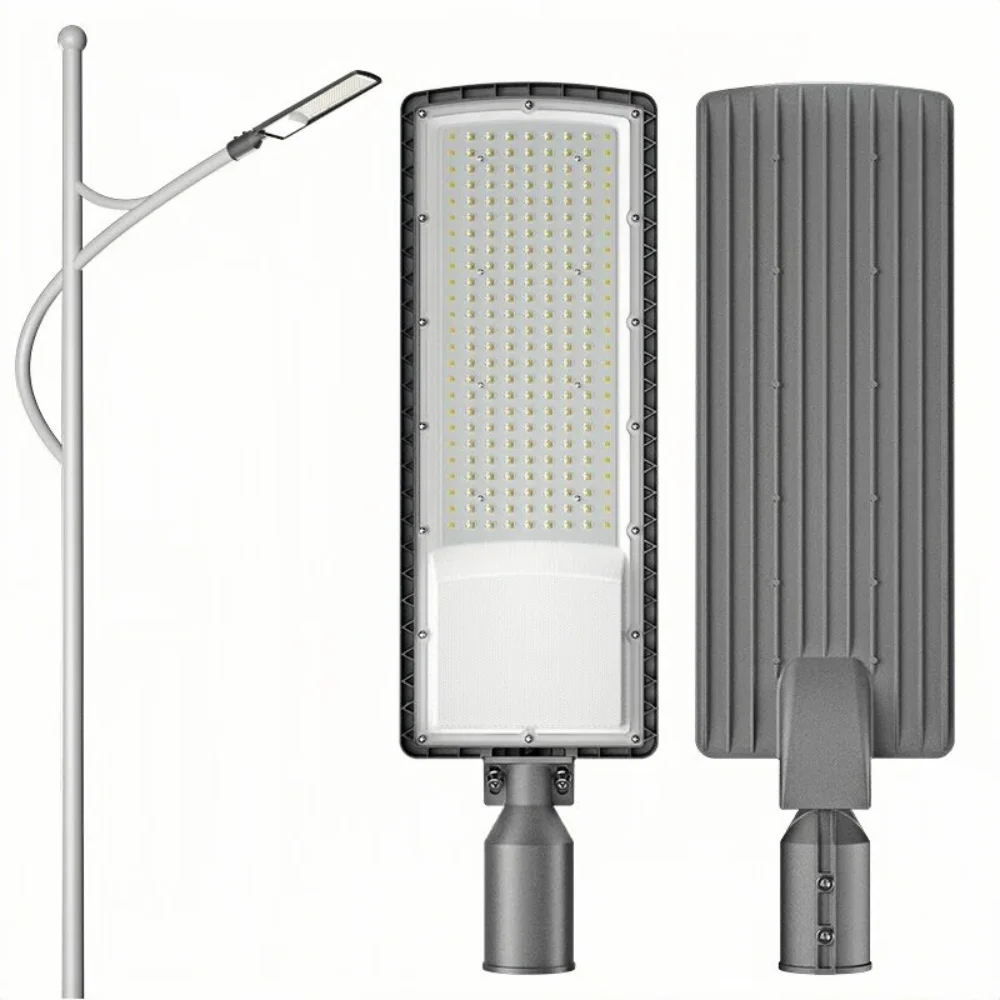

Casyoo Atlas Ridge LED Roadway Light is designed to meet the needs of contractors with the requirement of having dependable, specific-based outdoor lighting on varied road classes. It is provided with 50W/100W/150W/200W and uses high-output SMD3030 LEDs (Ra>80) and an optimized optical layout to produce bright and efficient light up to 120-130 lm/W. It has a single, corrosion-resistant, non-removable, thickened aluminum housing that facilitates improved heat dissipation, durability of lumen stability throughout 80,000 hours of operation. It has IP65 sealing, -40 +50 °C operation and 4kV surge protection to continue running during rain, dust and grid fluctuations. Universal 50/60mm spigot mounting with adjustable bracket is simple to aim at streets, parking lots, bridges and plazas, and is available in chipset and CCT OEM/ODM.
- Multi-wattage covering (50-200W) – For various road widths, pole height and spacing schemes.
- LED platform SMD3030 (Ra>80) – for clearer signage/objects and safer nighttime visibility.
- High efficacy up to 120-130 lm/W – reduce the cost of energy without sacrificing illuminance.
- One-piece aluminum aviation-grade body – provide anti-rust performance, and provides greater thermal transfer.
- IP65 waterproofing – resist wet weather, dust and wash-down areas.
- 4kV Surge protection– enhance grid resilience to grid spikes and transients due to lightning.
- Wide-temperature reliability (-40 to +50°C) – support all-season applications.

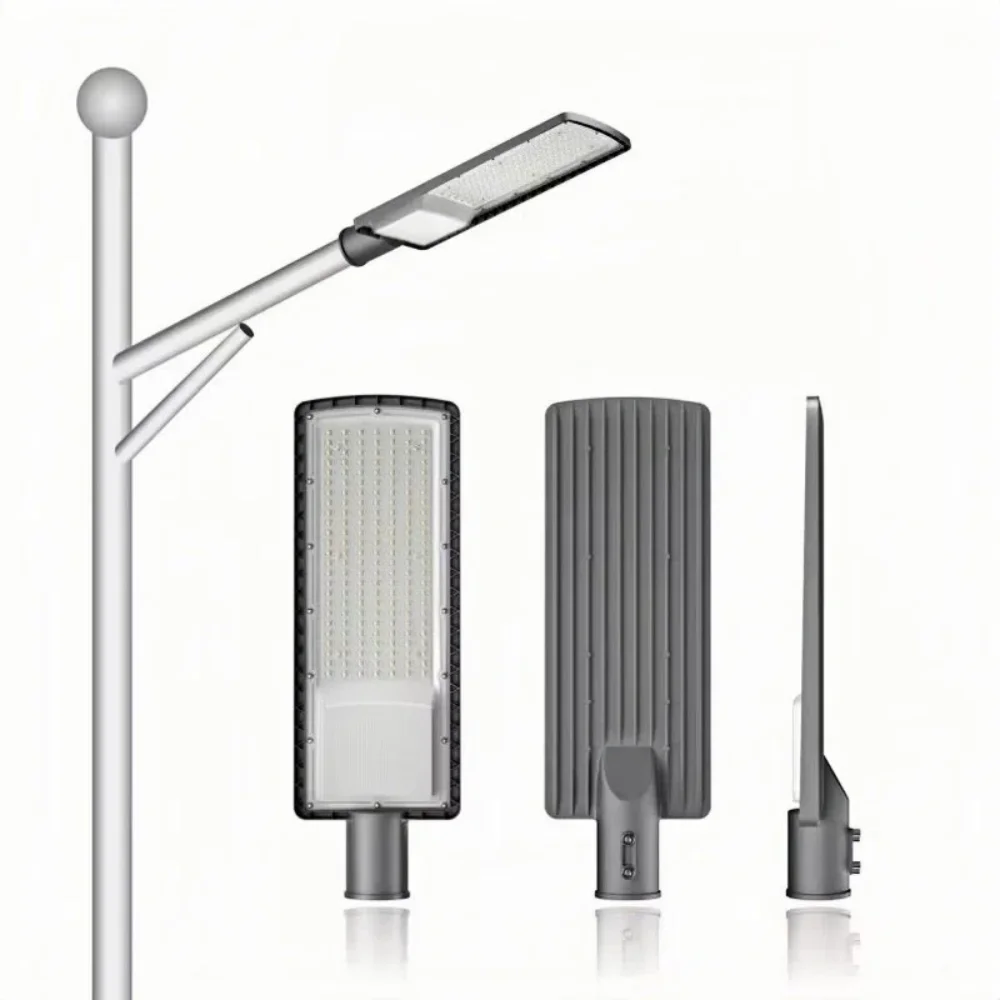

- Universal 50/60mm spigot + adjustable bracket – allows fast installation, stable fitting and precise aiming (custom sleeves available)
Ideal For:
Roadways, parking lots, driveways, residential areas, sidewalks, bridges, plazas, highways, gas stations, rural roads
Specification
| Series | Atlas Ridge |

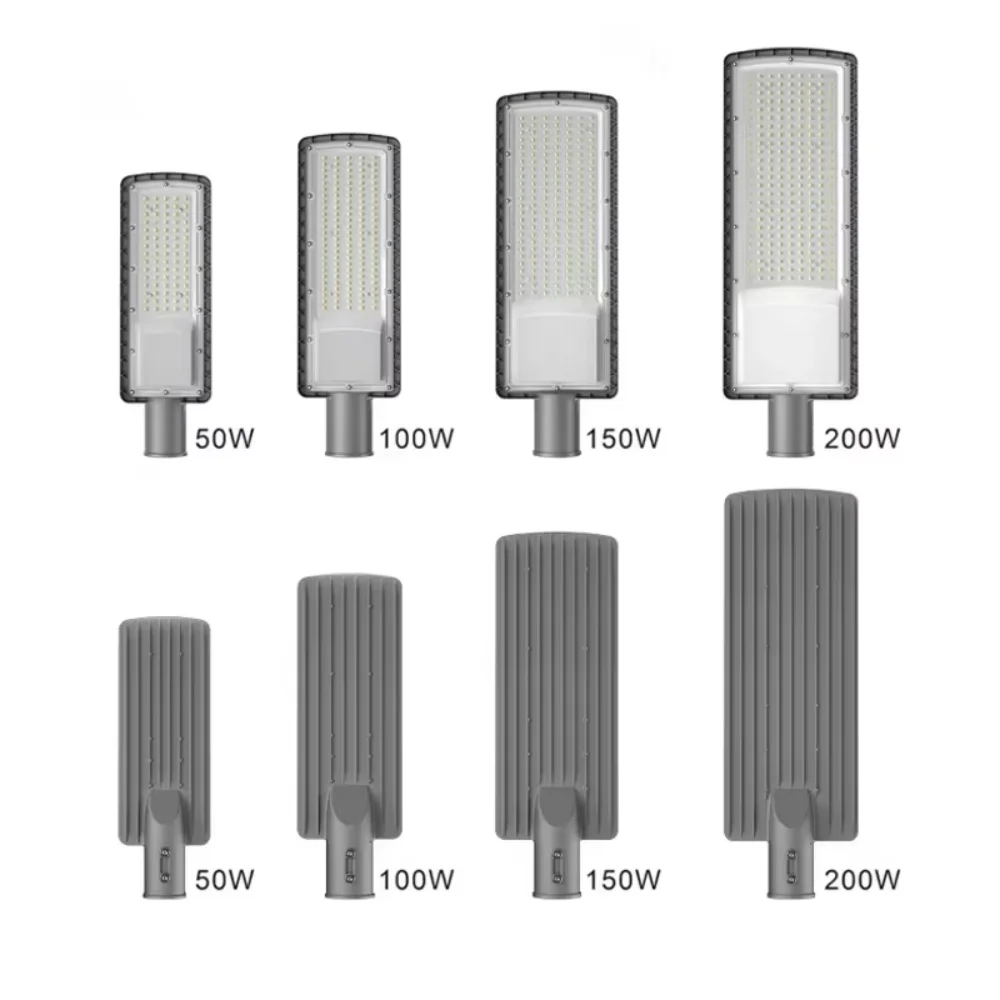

| Power Range | 50W / 100W / 150W / 200W |
| Power Supply | AC (mains-powered) |
| Input Voltage | AC100–265V, 50/60Hz |
| LED Type | SMD3030 (chipset customizable: Osram / Philips / others) |
| LED Quantity | 75 pcs / 125 pcs / 175 pcs / 225 pcs |
| Luminous Efficacy | 120–130 lm/W |
| CCT Options | 3000K–6500K (default 6500K; custom available) |
| CRI | Ra>80 |
| Power Factor | PF>0.95 |
| Surge Protection | 4kV |
| Operating Temperature | -40 to +50°C |
| Lifetime | 80,000 hours |
| Housing Material | Aluminum (thickened, corrosion-resistant) |
| IP Rating | IP65 |
| Product Size (L×W×H) | 485×130×65mm / 545×150×75mm / 615×180×75mm / 685×200×75mm |
| Spigot Size | 50W—50mm | 100W/150W/200W—60mm (custom sleeves available) |
| Mounting | Spigot mount with adjustable bracket; universal diameter port |
