Casyoo Helios Prime Series 200W–500W All-in-One Solar Street Light with Radar Sensor
$38.00

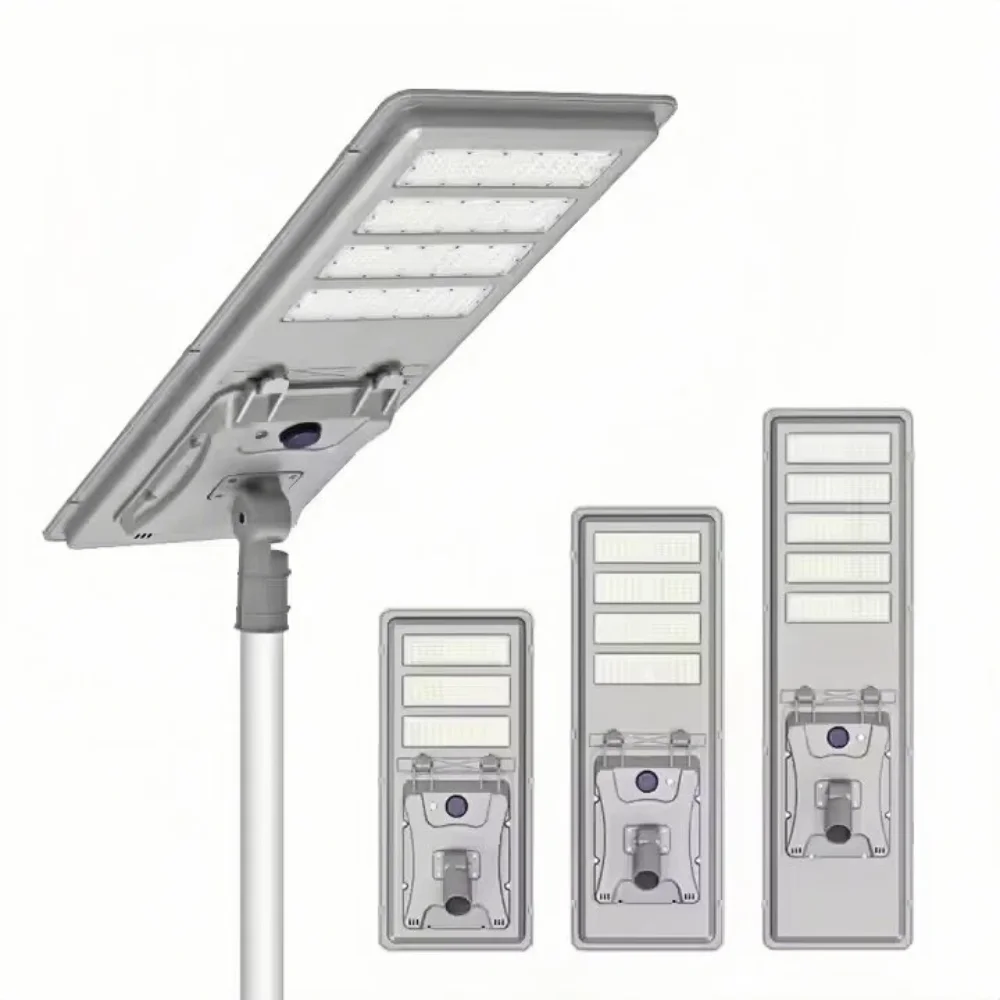

- High-Power Options: 200W / 300W / 400W / 500W
- 12–16 Hours of Lighting: Extended night operation after full solar charge.
- 3.2V 25–108Ah battery packs: Large storage for stable output and battery backup
- 6V 40–100W Polycrystalline Panels: Efficient solar array with weak-light trickle charging.
- IP66 Die-Cast Housing: Good heat dissipation, corrosion resistance and outdoor durability.
- Smart Sensor Control: For fine-tuning project lighting schedules.
- Expect your order to be delivered before scheduled dates
- 5-year warranty & 24h technical support
Description
Casyoo Helios Prime Series all-in-one solar street lights are designed to provide bright, zero-electricity roadway lighting for new rural roads, municipal streets and large outdoor facilities. Polycrystalline panels with high efficiency and Li-ion batteries with high capacity give the ability to charge constantly even in weak daylight and support 12 -16 hours of continuous work. This street light combines radar sensor and time control, enabling smart switching between high-brightness and energy-saving modes. The remote control mode makes the on-site adjustment simple for contractors and maintenance teams. With a high-transmittance lens and 3030/5050 LEDs, even penetration illumination is provided, covering up to 280 m².
- High-efficiency solar charging – Equipped with 6V 40–100 W polycrystalline solar panels, offering high conversion efficiency and stable power generation even in low-light conditions.
- Zero wiring and electricity bill – This all-in-one design with integrated battery and control system requires no underground cabling and grid connection costs.
- Smart Sensing – Ultra-wide radar sensor switches to full brightness when people or vehicles enter the detection zone and back to dim mode to save energy.
- Flexible LED configuration – Uses 3030 or 5050 LED chips with up to 300/250 pcs per fixture, and we support specified LED brands for project customization.
- High-transmittance optical lens – Boosts light utilization, delivers uniform, low-loss illumination over 150–280 m².
Ideal For:
Main and secondary roads, new rural roads, residential communities, highways, industrial parks, parking lots, campuses, greenbelts, parks, walkways and plazas.
Specification
| Series | Helios Prime |
| Power Range | 200W / 300W / 400W / 500W |
| Product Size (L×W×H) | 700×350×150mm / 887×400×280mm / 1160×400×280mm / 1435×400×280mm |
| LED Type | SMD 3030 / SMD 5050 |
| LED Quantity | 200W – 120 pcs (3030) / 100 pcs (5050); 300W – 180 pcs (3030) / 150 pcs (5050); 400W – 240 pcs (3030) / 200 pcs (5050); 500W – 300 pcs (3030) / 250 pcs (5050) |
| CCT | 6500K (cool white), other color temperatures on request |
| Battery Type & Capacity (Radar Mode) | 3.2V 25Ah / 35Ah / 45Ah / 60Ah |
| Battery Type & Capacity (Time Control Mode) | 3.2V 50Ah / 72Ah / 96Ah / 108Ah |
| Continuous Lighting Time | Approx. 12–16 hours after full charge (depending on mode and configuration) |
| Solar Panel Type | Polycrystalline silicon |
| Solar Panel Power | 6V 40W / 6V 60W / 6V 80W / 6V 100W |
| Solar Panel Size (L×W) | 640×345mm / 850×395mm / 1100×395mm / 1400×385mm |
| IP Rating | IP66 |
| Housing Material | One-piece die-cast aluminum body with high-transmittance lens panel |
| Lighting Modes | Radar sensing + time control constant-on + light control (auto ON/OFF at dusk/dawn) |
| Switch Type | Sensor control + remote control |
| Charging Mode | Daytime solar charging with weak-light trickle charging |
| Optical Design | High-transmittance lens for uniform, penetrating illumination and low light loss |
| Mounting & Adjustment | All-in-one, cable-free pole mounting with universal spigot, lamp head angle adjustable up to 180° |
| Lifespan | Up to 50,000 hours |
| Customization | LED brand, CCT, control strategy, logo and packaging customizable for projects |
FAQs
1. What power options are available in the Helios Prime Series?
The Casyoo Helios Prime Series offers four power options: 200W, 300W, 400W, and 500W.
2. How do I choose the right wattage and model for my project?
As a general reference, 200–300W models are often used for community roads, small parking lots and internal industrial roads, while 400–500W models are suitable for wider municipal roads, main entrances of industrial parks and larger open areas. Please share your road width, pole height and required lux level, and our engineers can recommend the most suitable configuration.
3. How does the radar sensor and time control function work?
When people or vehicles enter the detection area, the radar sensor will automatically switch the light to high-brightness mode. When there is no movement, the light will be in an energy-saving mode. Time control allows fixed timing schedules (for example, full brightness in the early evening and dim mode in late night), which can be set and adjusted via remote control.
4. What is the duration of the light after a full charge?
Helios Prime lights can provide approximately 12-16 hours of continuous lighting per night, utilizing high-efficiency polycrystalline solar panels and large-capacity 3.2V battery packs. It depends on the mode used (radar or time control) and actual environmental conditions.
5. Does your company support customization?
Yes. The Helios Prime Series supports 3030 or 5050 LED packages. You can require specified brands according to project or tender requirements. CCT, brightness level, and even optical distribution can be customized within a reasonable range. We also support logo printing, packaging design and other OEM/ODM services.
6. What are the tests and quality control that you do before shipment?
We will do incoming material inspection, electrical and optical tests, waterproof testing, and aging tests under the simulated conditions of work.
