Casyoo QB288 Quantum Board Grow Light Osram 660nm Full Spectrum

Maximize plant growth with the Casyoo QB288 Quantum Board, engineered for professional and hobbyist growers. This board is rigorously tested, offering premium performance at a budget-friendly price.

1-50 pieces

US$29

50 - 100 pieces

US$27.5

≥ 100 pieces

Negotiatable

casyoo-certificates

Description

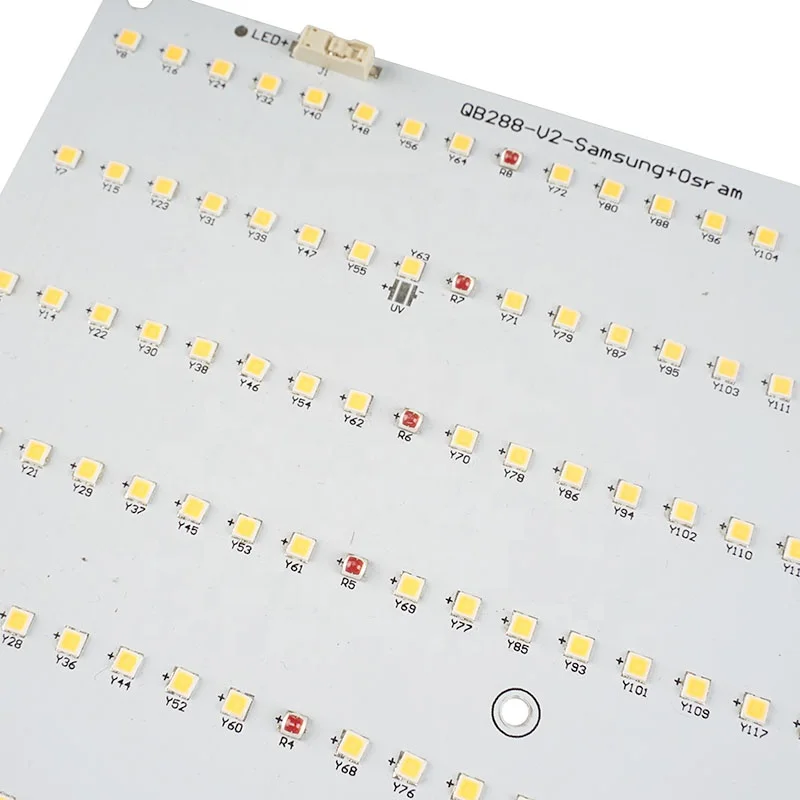

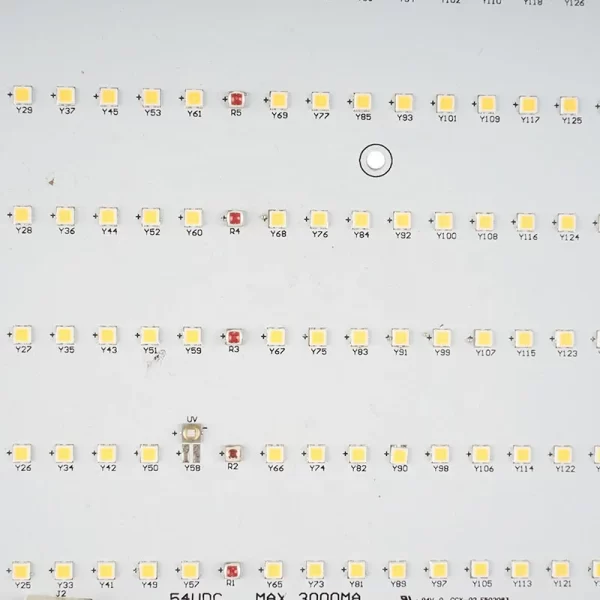

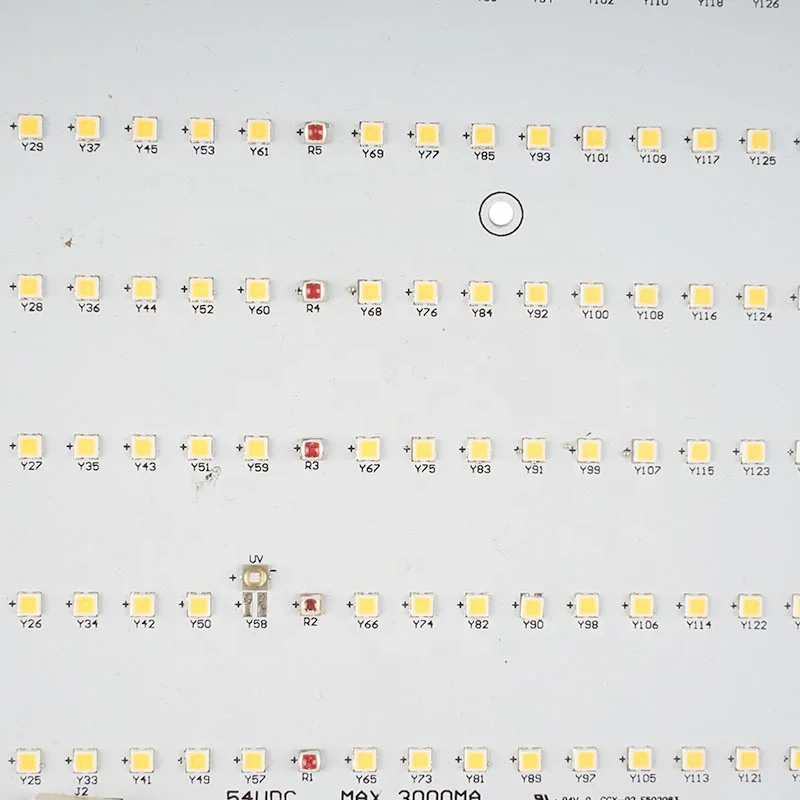

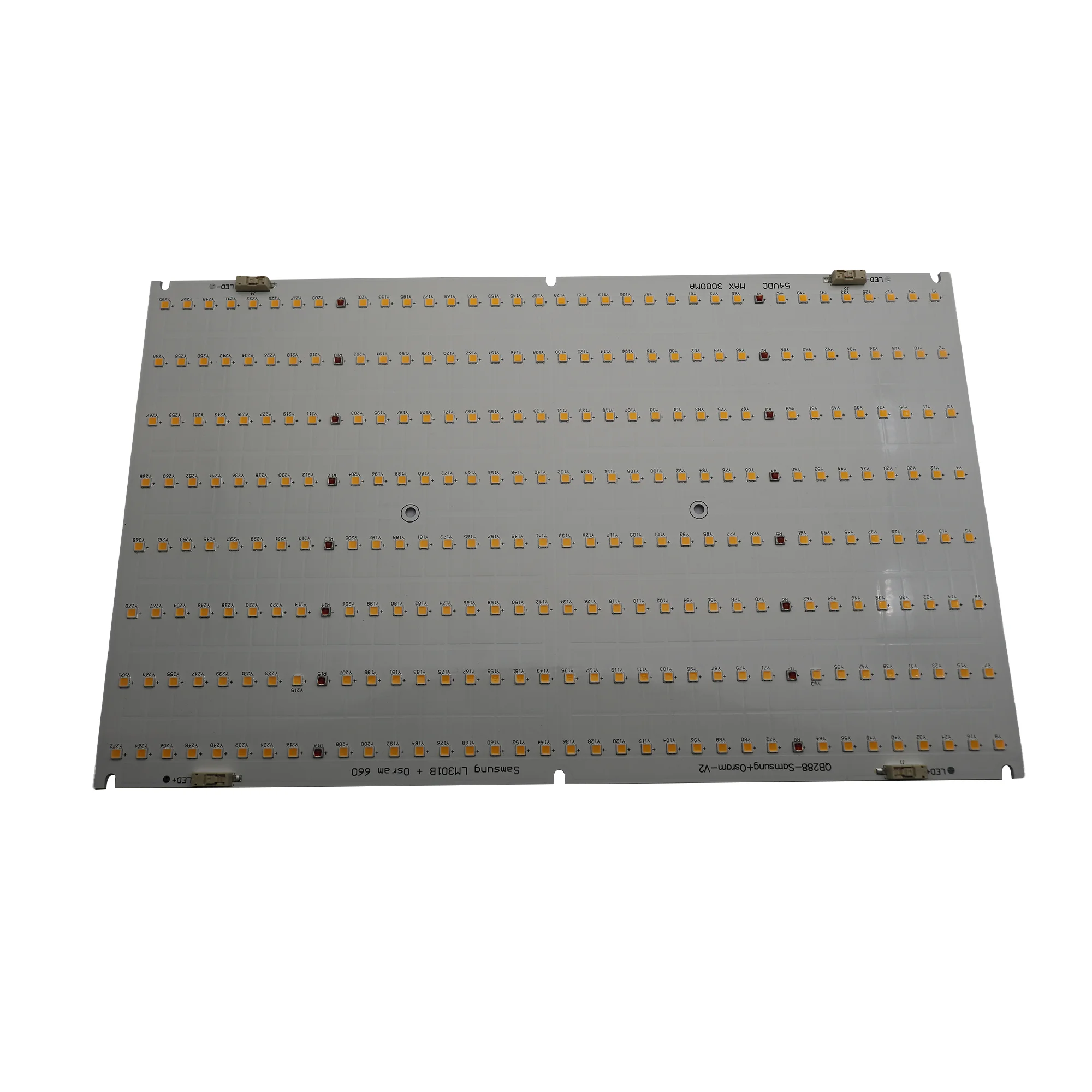

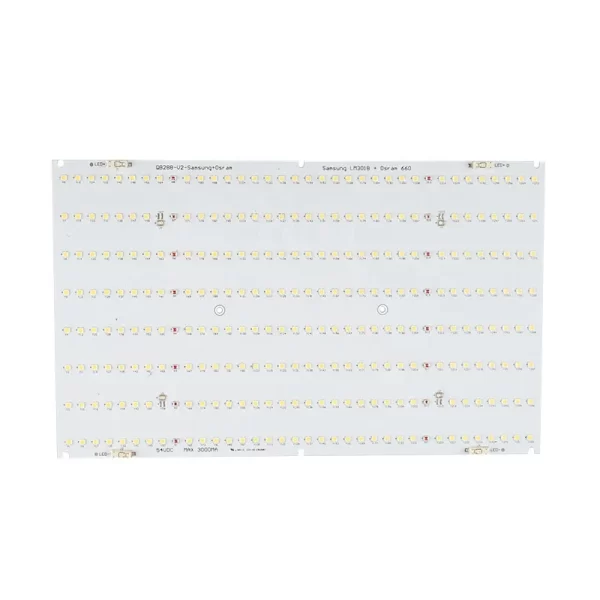

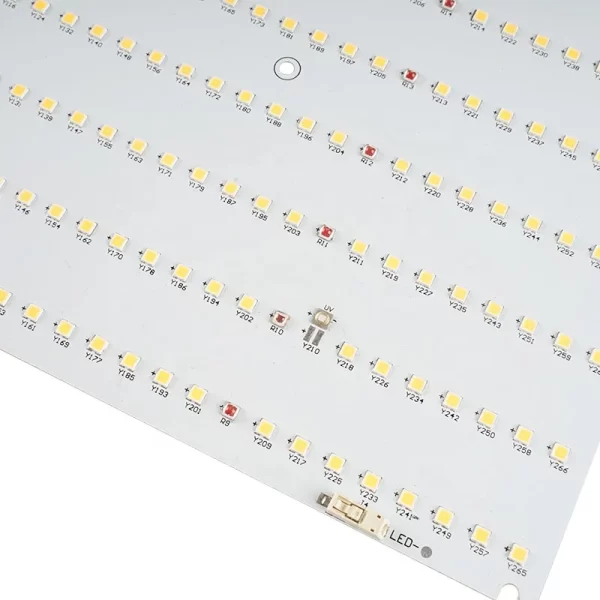

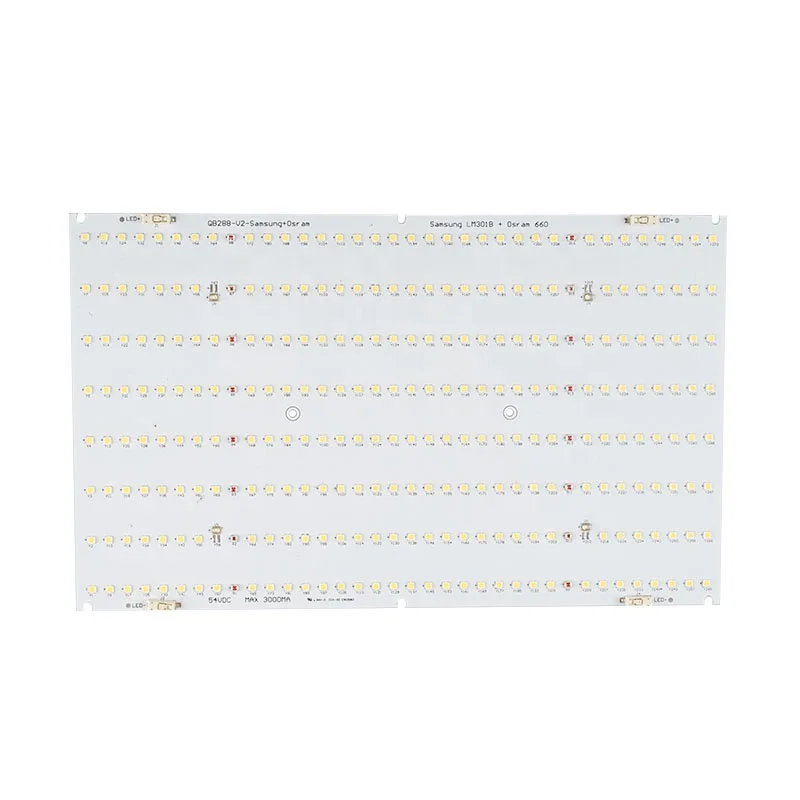

Casyoo QB288 Quantum Board Grow Light combines 288 Samsung LM301B/H LEDs and 18 Osram 660nm deep red diodes for full-spectrum coverage, ideal for all growth stages. Delivering a robust 1337 PPFD and 120W±10% power, it ensures energy savings with a 0.99 PF value and a 50,000-hour lifespan. Perfect for hydroponics, greenhouses, or home setups, each board is tested for reliability. Requires a heatsink for operation above 55W.

Detail features include:

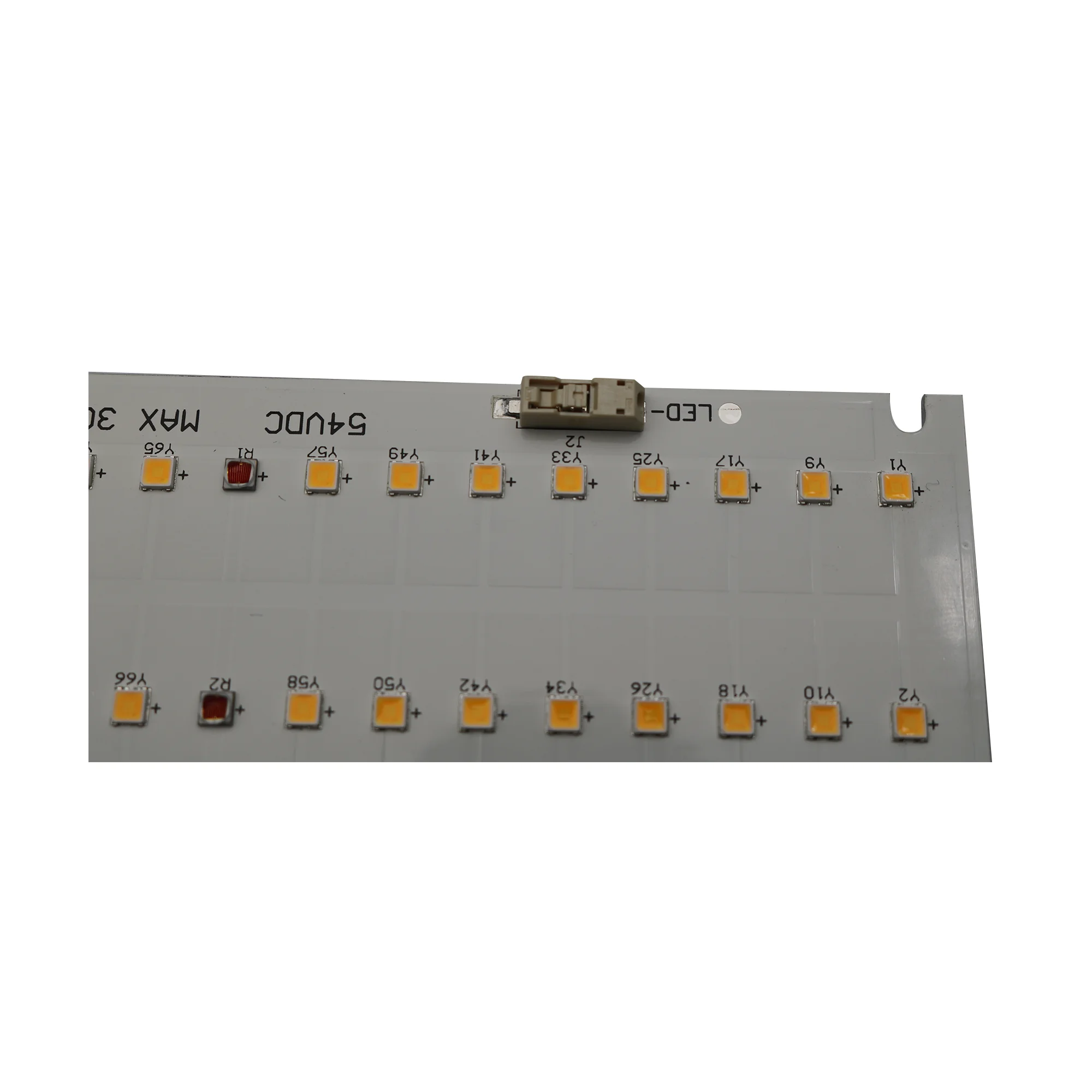

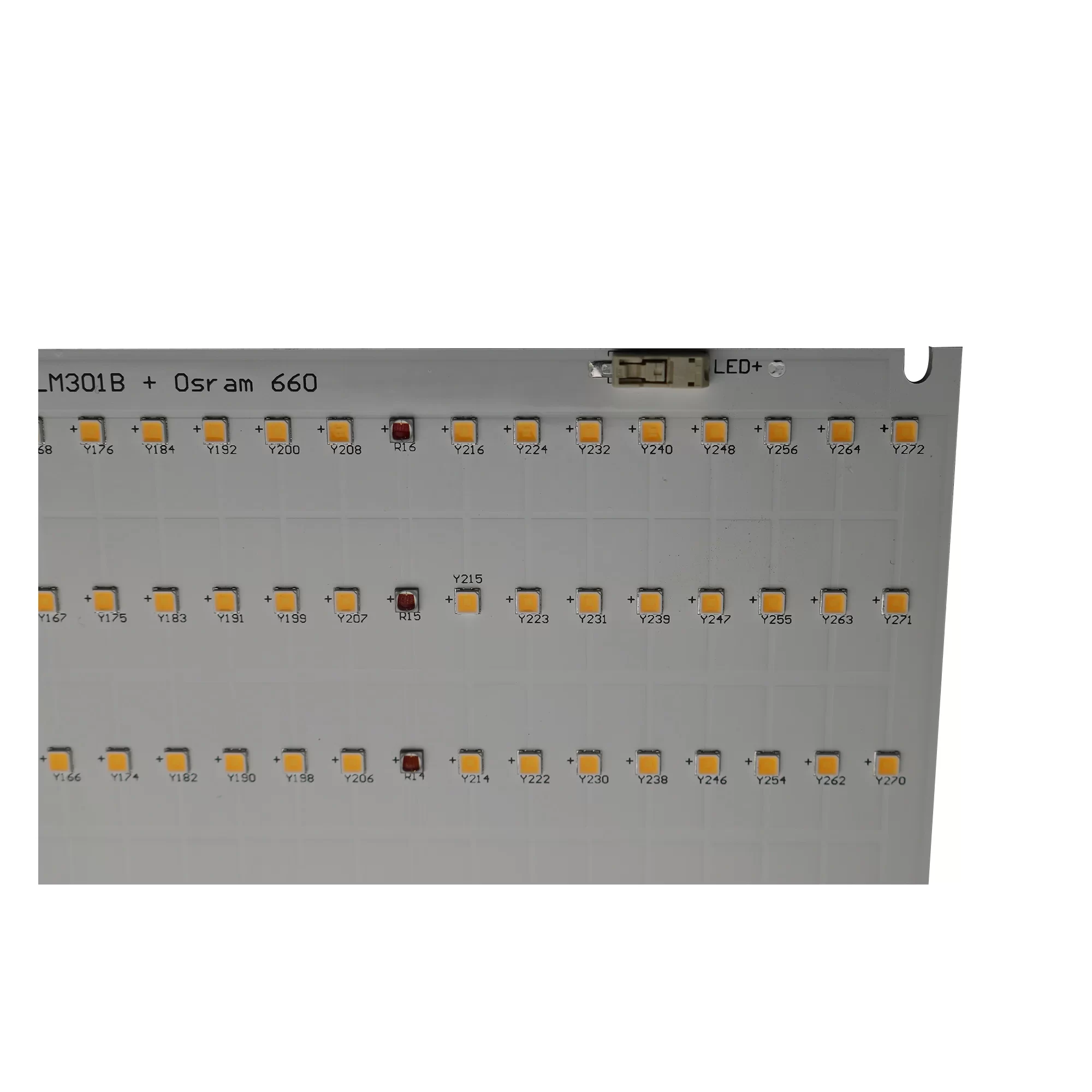

  • Advanced LED Tech: 288 Samsung LM301B/H LEDs (3500K) paired with 18 Osram 660nm red diodes for balanced vegetative and flowering support.
  • High Efficiency: 1337 PPFD output and 2.11 µmol/s/W PPF ensure optimal light penetration and energy use.
  • Durable & Reliable: 50,000-hour lifespan with a robust PCB (HASL finish) and wide voltage range (110-277V).
  • Easy Integration: Compact design (11.25″ x 6.83″) and lightweight (0.5 lbs). Includes 300V-rated connectors for safe daisy-chaining.

Ideal For:

  • Indoor hydroponics, greenhouses, and vertical farms
  • Veg/flower cycles for cannabis, vegetables, or ornamental plants
  • Growers prioritizing energy savings without compromising yield

LEAD TIME

Quantity Lead Time
1-50 pcs 25 days
51-100 pcs 30 days
100+ pcs To be confirmed
Model Number CYS-150W-QB288 Lamp Power 0.5W
Size 285*174*10mm Power 120W±10%
Net weight ≈0.2kg PPFD 1337
Input voltage 110-277V PF >0.99
Working Current 630mA Life 50,000hours
Working Frequency 50-60Hz PPF 2.11 umol/s/W
Working Temperature  -20℃-40℃ PCB Surface Finishing HASL

Reviews

There are no reviews yet.

Be the first to review “Casyoo QB288 Quantum Board Grow Light Osram 660nm Full Spectrum”

Your email address will not be published. Required fields are marked *

1. Do I need a heatsink for this board?
Yes. A heatsink or aluminum plate is required if operating above 55W or 1050mA to ensure optimal heat dissipation and longevity.

2. What spectrum does this light cover?
It combines Samsung LM301B/H (3500K) white LEDs and Osram 660nm deep red diodes, providing full-spectrum coverage ideal for both vegetative growth and flowering.

3. Does it work with 110V and 220V outlets?
Yes. The input voltage range (110-277V) supports global use without additional converters.

4. What’s PPFD, and why is 1337 important?
PPFD (Photosynthetic Photon Flux Density) measures light intensity for plants. 1337 µmol/m²/s ensures strong penetration for robust growth in all stages.

5. Is this suitable for cannabis cultivation?
Absolutely. The full-spectrum blend and high PPFD make it ideal for cannabis, vegetables, herbs, and ornamental plants.

6. What’s the package size?
The single product package size is 300*190*60mm.
