Casyoo 480W Multi Bar LED Grow Light IP67 Full Spectrum Osram Samsung
Elevate your grow with CSY-480W-SB1512 multi bar LED grow light, engineered to deliver powerful, uniform illumination and exceptional canopy penetration. Its optimized full spectrum (3500K+6500K+660nm) provides the ideal light for every growth stage, from vigorous vegetative growth to abundant flowering and fruiting. Experience consistent, healthy development thanks to even light distribution from a 120° beam angle. Plus, with efficient thermal management, a reliable, dimmable driver (10%-100%), and a flexible, IP67 waterproof design, this light is built for durability, quiet operation, and ultimate control in any setup.
US$320
US$319
Negotiatable
- Expect your order to be delivered before scheduled dates
- Best after-sale service
Description
This high-performance LED bar grow light, CSY-480W-SB1512, delivers powerful full-spectrum output, efficient heat management, and flexible design—perfect for serious growers seeking reliable, large-area coverage.
Detail features include:
- High Light Output: This grow light delivers powerful, uniform illumination with excellent canopy penetration. It provides up to 1130 µmol/m²/s PPFD at 30 cm and 680 µmol/m²/s at 60 cm, giving your plants the light they need at every level.
- Optimized Spectrum: With its 3500K+6500K+660nm full spectrum light, the lamp reaches 235 W/㎡ PAR at 30 cm and 140 W/㎡ at 60 cm. It promotes flowering and fruiting while supporting healthy growth throughout the entire plant cycle.
- Even Light Distribution: With a 120° beam angle, this light delivers wide, uniform coverage to ensure all your plants receive consistent, optimal light for healthy, even growth.
- Efficient Thermal Management: The bar design increases contact with air, improving airflow and helping disperse heat efficiently — even high-power fixtures can run fanless for quiet, reliable performance.
- Reliable and Dimmable Driver: Its Meanwell LED driver ensures safe and reliable performance. You can easily fine-tune the brightness from 10% to 100% using the 1-10V dimming system to match different plant types and growth stages.

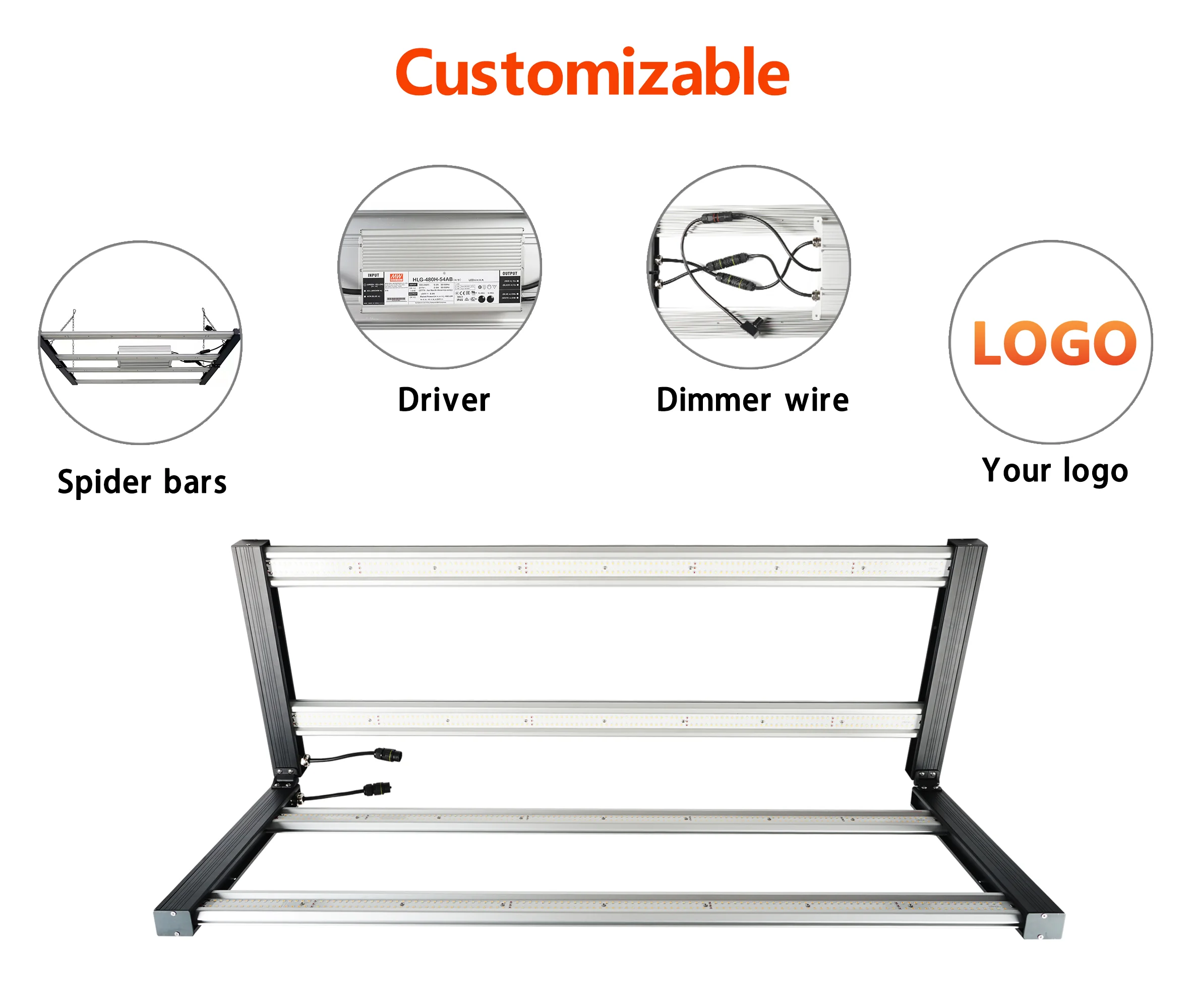

- Convenient & Durable Design: It’s flexible and easy to use, allowing you to detach, fold, or adjust the spacing between bars to suit your setup. With an IP67 waterproof rating, it’s built to last in demanding environments and a wide range of applications.
Ideal For:
- Indoor hydroponics, greenhouses, and multi-layer vertical farms
- High-humidity areas
- Large commercial grow operations
- Veg/flower cycles for cannabis, vegetables, or ornamental plants
- Growers prioritizing energy savings without compromising yield
LEAD TIME
| Item Code | CSY-480W-SB1512 | Power Consumption | 480W |
| Input Voltage | AC100-240V | Frequency | 50/60Hz |
| Power Factor (PF) | >0.98 | Light Distribution | 120degree |
| IP Rating | IP67 | Dimensions | 1070X760X100MM |
| PAR | 235 W/㎡ (at 30cm), 140 W/㎡ (at 60cm) | Spectrum | Full spectrum |
| PPE (Photon Efficacy) | 2.8 µmol/J | PPFD | 1130 µmol/m²/s (at 30cm), 680 µmol/m²/s (at 60cm) |
| Light Source (LED Chips) | 832pcs 3500K Samsung LM301B+128pcs 6500K 301B+48pcs Osram 660nm | Illuminance | 69500 lux (at 30cm), 42000 lux (at 60cm) |
| Dimming Function | 1-10V 10%-100% dimming | LED Driver | Meanwell LED Driver HLG-600H-54AB 480W |
| Lifetime | >54,000hours | Net weight | 15 kg |
1. Do I need to buy a ballast for the light?
No, LEDs do not need ballasts.
2. I only have regular power outlets in my house. Do I need to use a converter?
You can plug it directly into a regular outlet in your house. Its input voltage is AC100-240V.
3. What is the effective coverage area for this fixture?
At the flowering stage, this grow light has a practical coverage area of about 1.1 meters by 1.1 meters (close to 3.5 ft. by 3.5 ft.).
4. Do multi-bar LED grow lights yield more than HPS lights?
Yes! Multi-bar LED grow lights typically offer a full spectrum, giving your plants the precise lighting they need at every growth stage to optimize the rate of plant growth. Additionally, LED lights produce light that penetrates more efficiently than HPS ones, resulting in a large harvest in one growing season.
5. Are the LED bars or drivers easily replaceable?
Yes, our LED grow light bars can be detached. It is very convenient to replace or adjust the light.
6. What are the recommended installation methods forvertical racks?

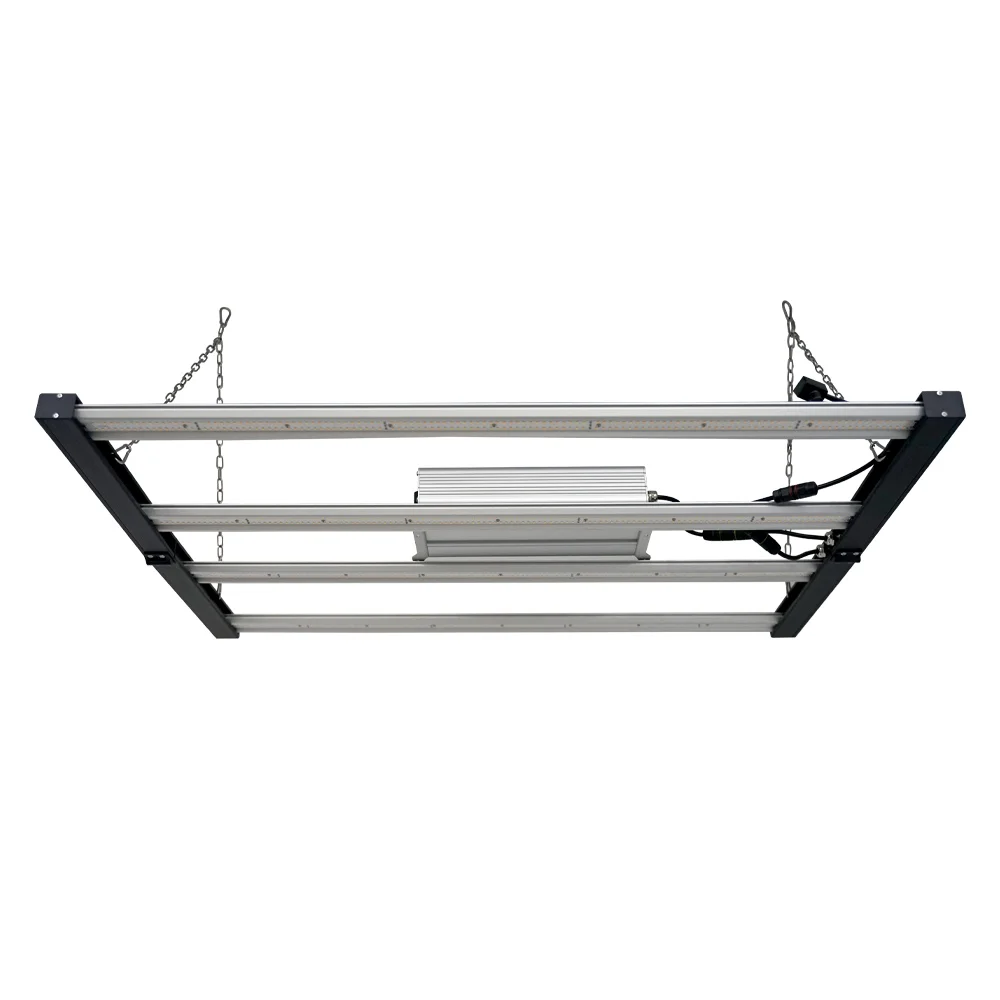

Multi-bar grow lights are usually suspended with adjustable suspension cables or are integrated with racking systems to provide efficient, non-uniform lighting on multiple levels of vertical racks.
